386EVO-BB

Product information

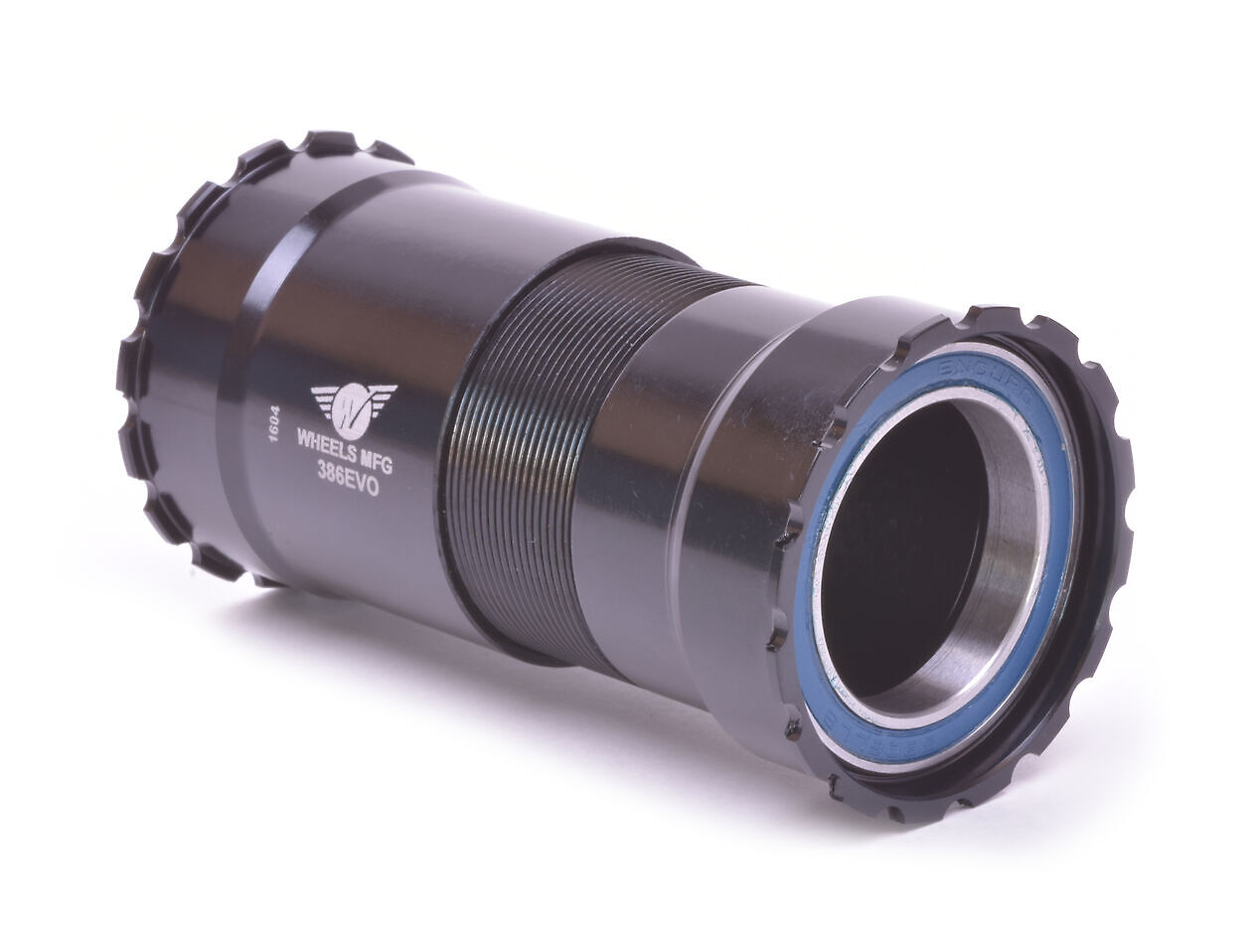

386EVO ABEC-3 BB for 30mm Cranks - Black

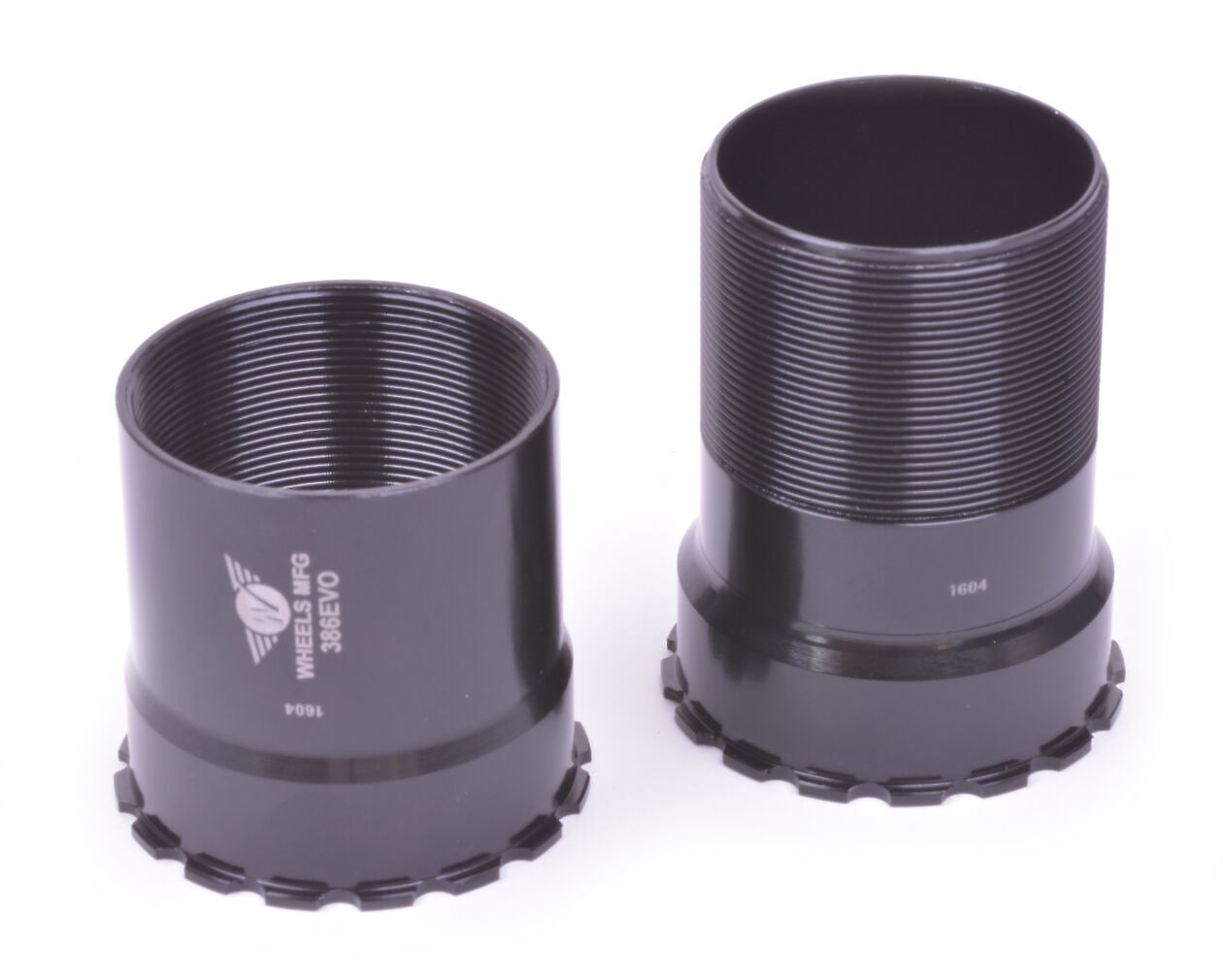

Thread together BB for 386EVO and BBRIGHT frames and 30mm spindle diameter cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

• Bearings: Enduro ABEC-3
• Color: Black
• Bottom Bracket/Frame Interface: BB386EVO, BBRIGHT, PF30/83
• Bottom Bracket Shell Width (mm): 79mm - 92mm
• Bottom Bracket Shell I.D.: 46mm
• Crank Spindle Diameter: 30mm
• Over Bearing Width: 86.5mm in 86.5mm wide shell
• Tool Patern: 16 Notch 48.5
• Weight: 126g
• Packaged for retail display
• Will accept 24mm and 24/22mm cranksets using Wheels Mfg. 386EVO BB / Crank Adapters

- Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards (46mm BB shell ID, 86mm - 92mm wide BB shell) and 30mm diameter spindle cranks:

• BB386EVO
• BB392EVO
• BBRIGHT
• PF30 with 83mm wide BB shell (downhill)

*Note:

If used with Quarq Powermeter cranks, please see the Wheelsmfg Compatibility Issues page for known issues.

Download PDF information: 1732801213386evo-instructions-web.pdf
