386EVOBB-SHIMAC

€ 153,00

Article number: 386EVOBB-SHIMAC

811079024206

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

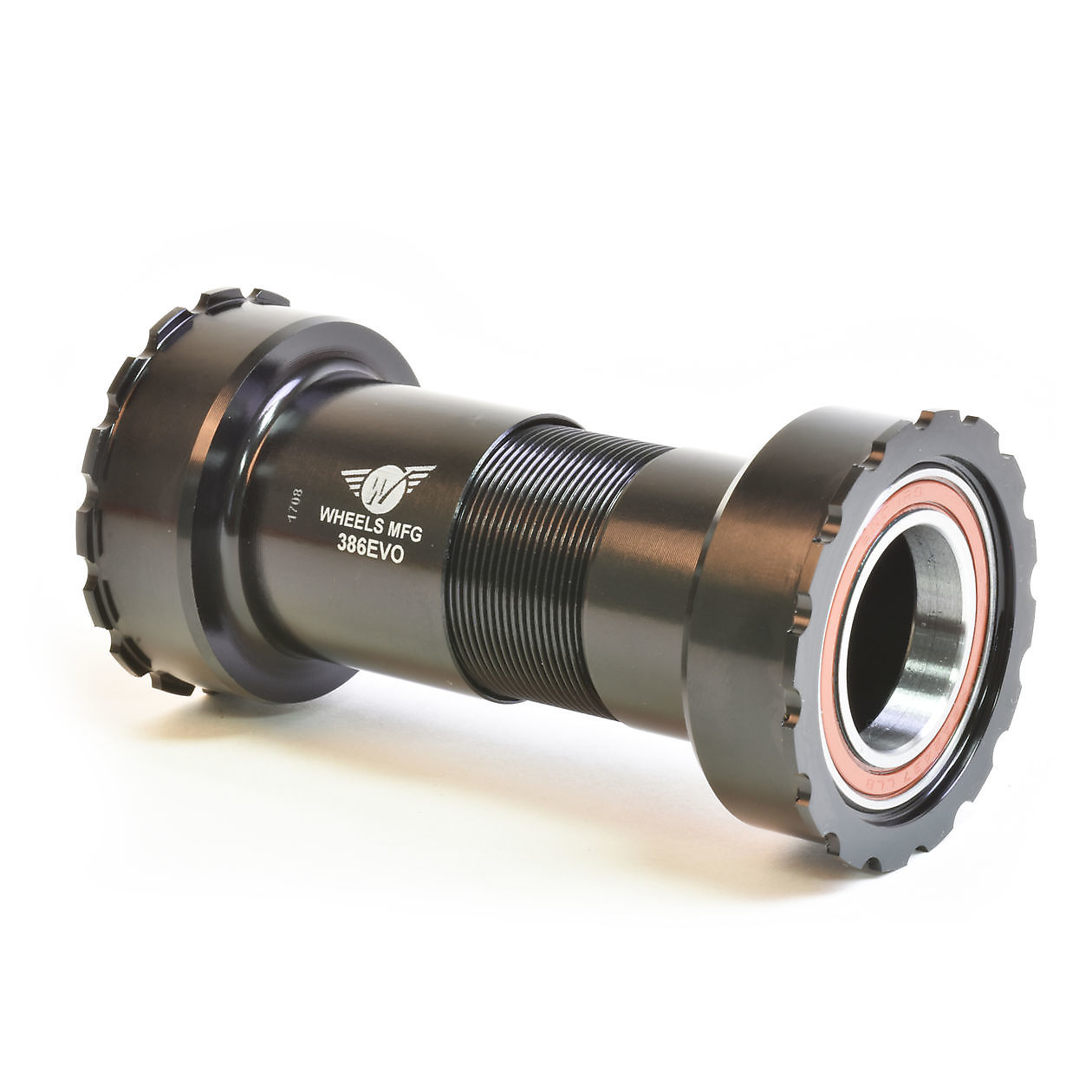

386EVO Angular Contact BB for 24mm (Shimano) Cranks - Black

BB Installation
Thread together BB for 386EVO frames and 24mm diameter spindle cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

Bearings: Enduro Angular Contact
Color: Black
Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
Bottom Bracket Shell Width (mm): 86mm - 92mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 24mm
Over Bearing Width: 91.5mm in 86.5mm wide shell
Tool Patern: 16 Notch 48.5mm
Weight: 133g
Packaged for retail display

- Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with the following Bottom Bracket Standards (46mm BB shell ID, 86mm - 92mm wide BB shell) and 24.00mm diameter spindle cranks*:

BB386EVO
BB392EVO

*Note:

If used with FSA 24mm cranks, please see our Compatibility Issues page for known issues.

Download PDF information: 1726229398386evo-instructions-web.pdf
