386EVOBB-SHIMBB

€ 125,00

Article number: 386EVOBB-SHIMBB

811079025937

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

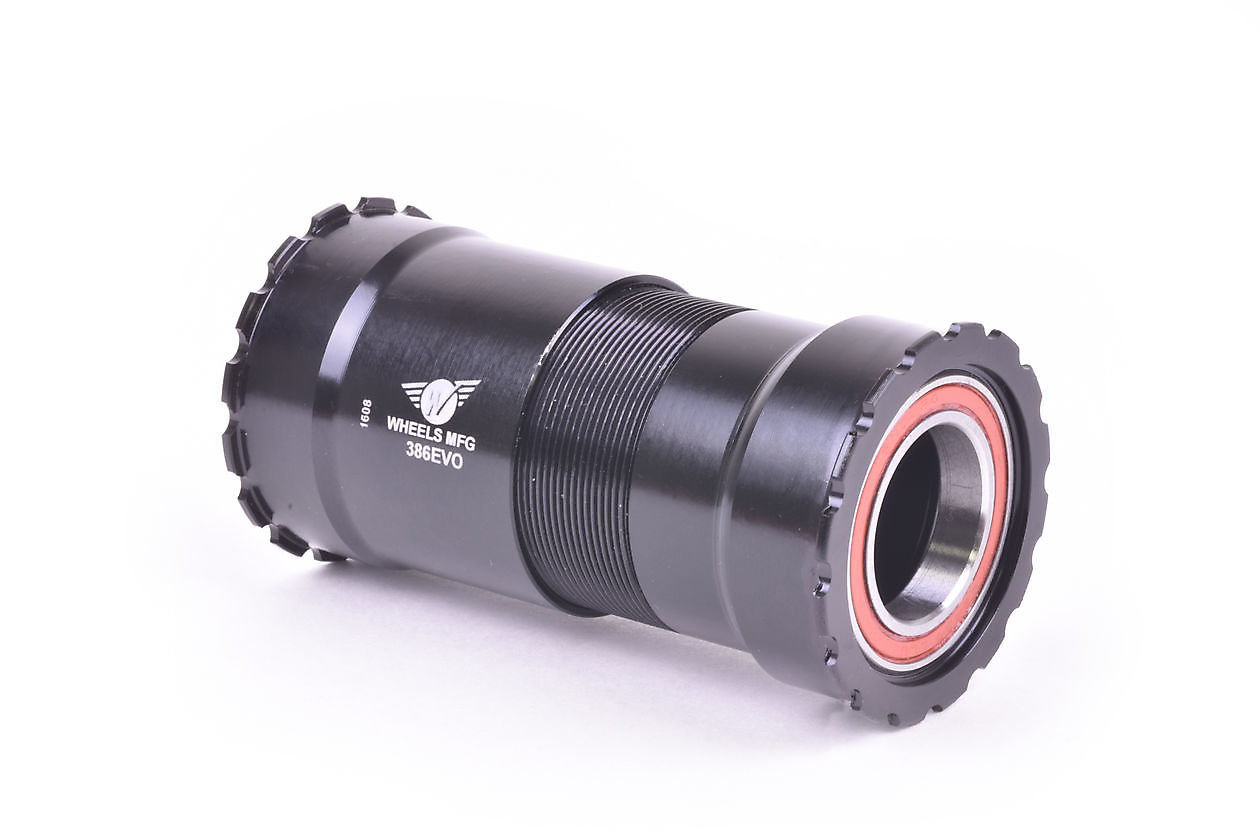

386EVO ABEC-3 BB for 24mm (Shimano) Cranks - Black

BB InstallationThread together BB for 386EVO frames and 24mm diameter spindle cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.

Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
Bottom Bracket Shell Width (mm): 86mm - 92mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 24mm
Over Bearing Width: 91.5mm in 86.5mm wide shell
Tool Patern: 16 Notch 48.5
Weight: 133g
Packaged for retail display

- Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards (46mm BB shell ID, 86mm - 92mm wide BB shell) and 24.00mm diameter spindle cranks*:

BB386EVO
BB392EVO

Download PDF information: 1727702333386evo-instructions-web.pdf
