6002-EXT

€ 39,00

Article number: 6002-EXT

836572002933

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

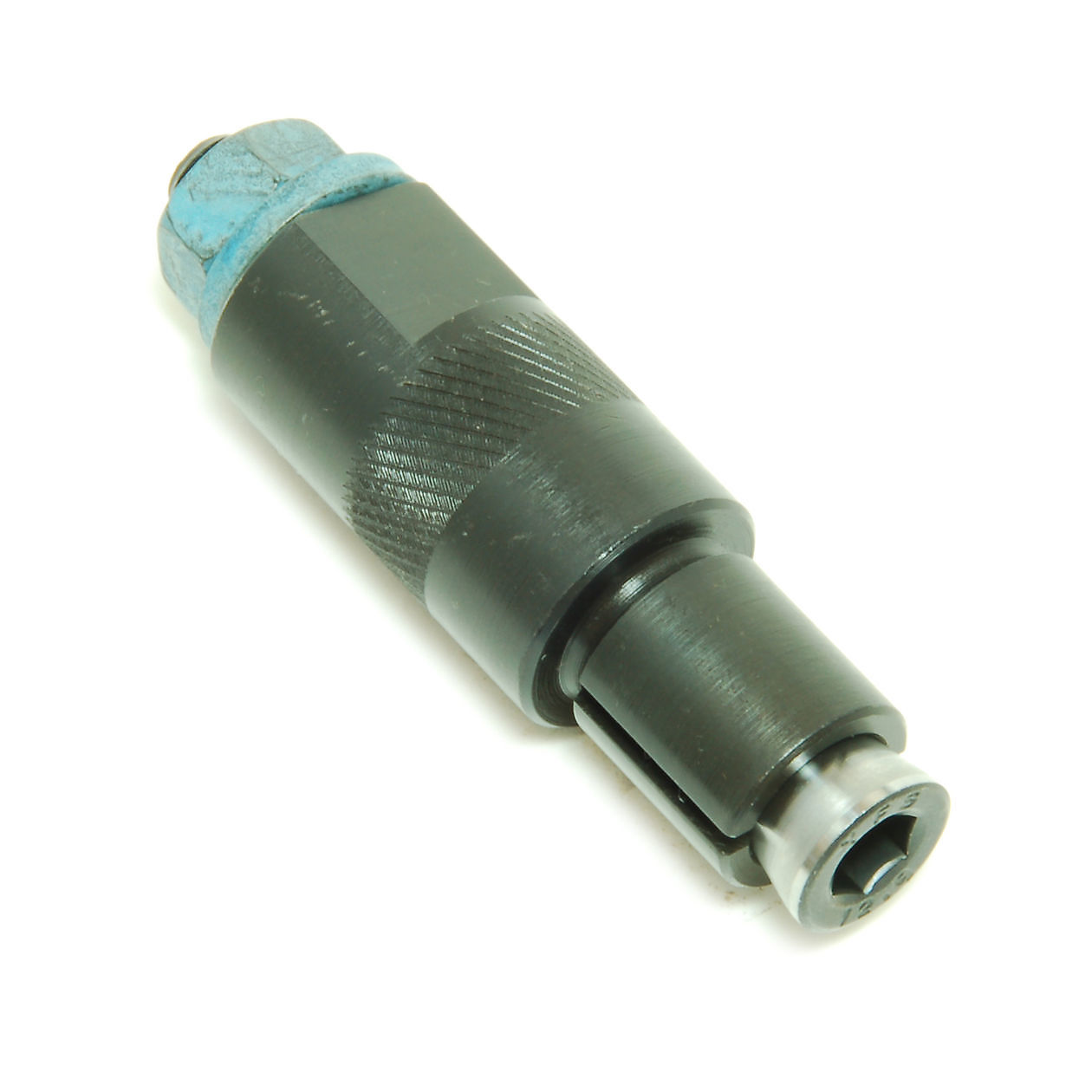

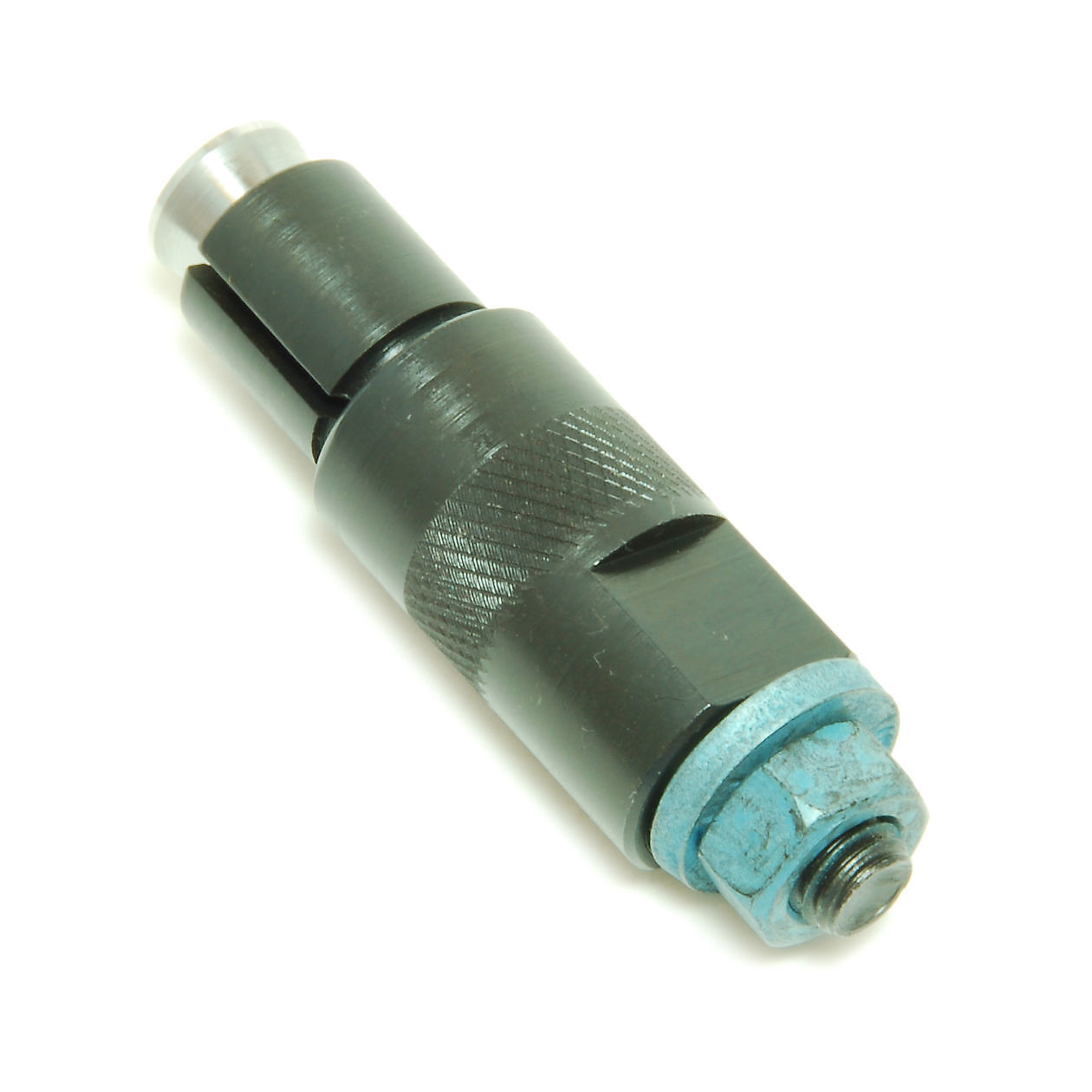

6002, 6702, 6802, 6902, 15267 & 15268 (15mm) Sealed Bearing Extractor

Individual extractor for removing 6002, 6702, 6802, 6902, 15268 & 15267 sealed bearings with 15mm inside diameter.

These bearing extractors grip the inside race of a sealed bearing, allowing the bearing to be tapped out of the hub shell or frame component. Insert the extractor into the bearing, tighten one side with a matching wrench, and the collet expands to grip the inside of the bearing. Tap the extractor & bearing out together with a punch and hammer.

All extractors are size specific! If attempting to remove a bearing of a different size than the extractor, you will permanently damage or break the extractor. If the extractor is smaller than the bearing, try using a shim between the extractor and the bearing to get the tightest fit before tightening the extractor bolt.

Bearing extractor requires the following tools:

(1) 13mm open or box-end wrench
(1) 15mm open end wrench
(1) Punch (diameter should be smaller than 15mm.)
(1) Hammer

Instructions
