608 & 688 (8mm) Sealed Bearing Extractor (608-EXT)

€ 40,50

Article number: 608-EXT

836572004678

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information

608-EXT
608 & 688 (8mm) Sealed Bearing Extractor

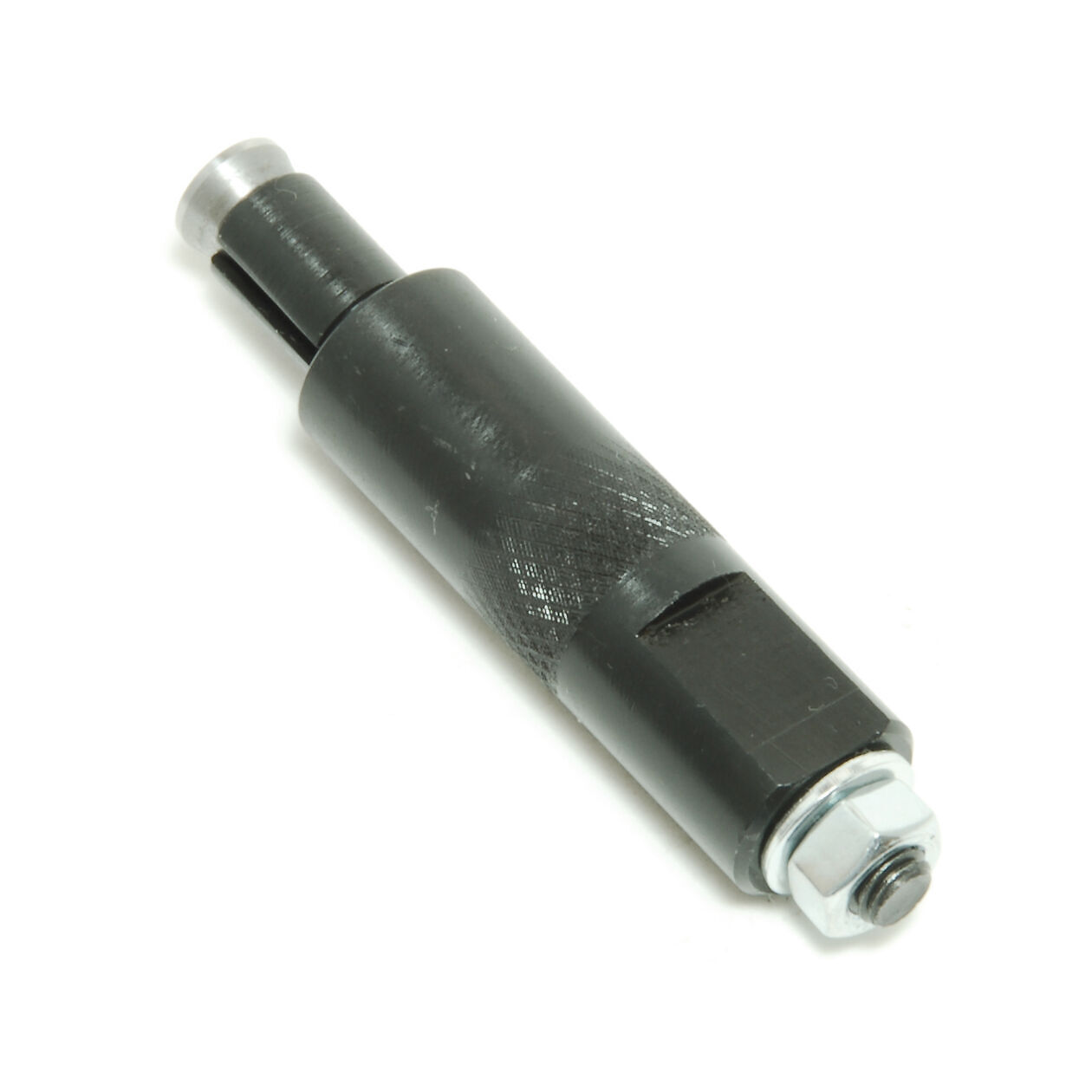

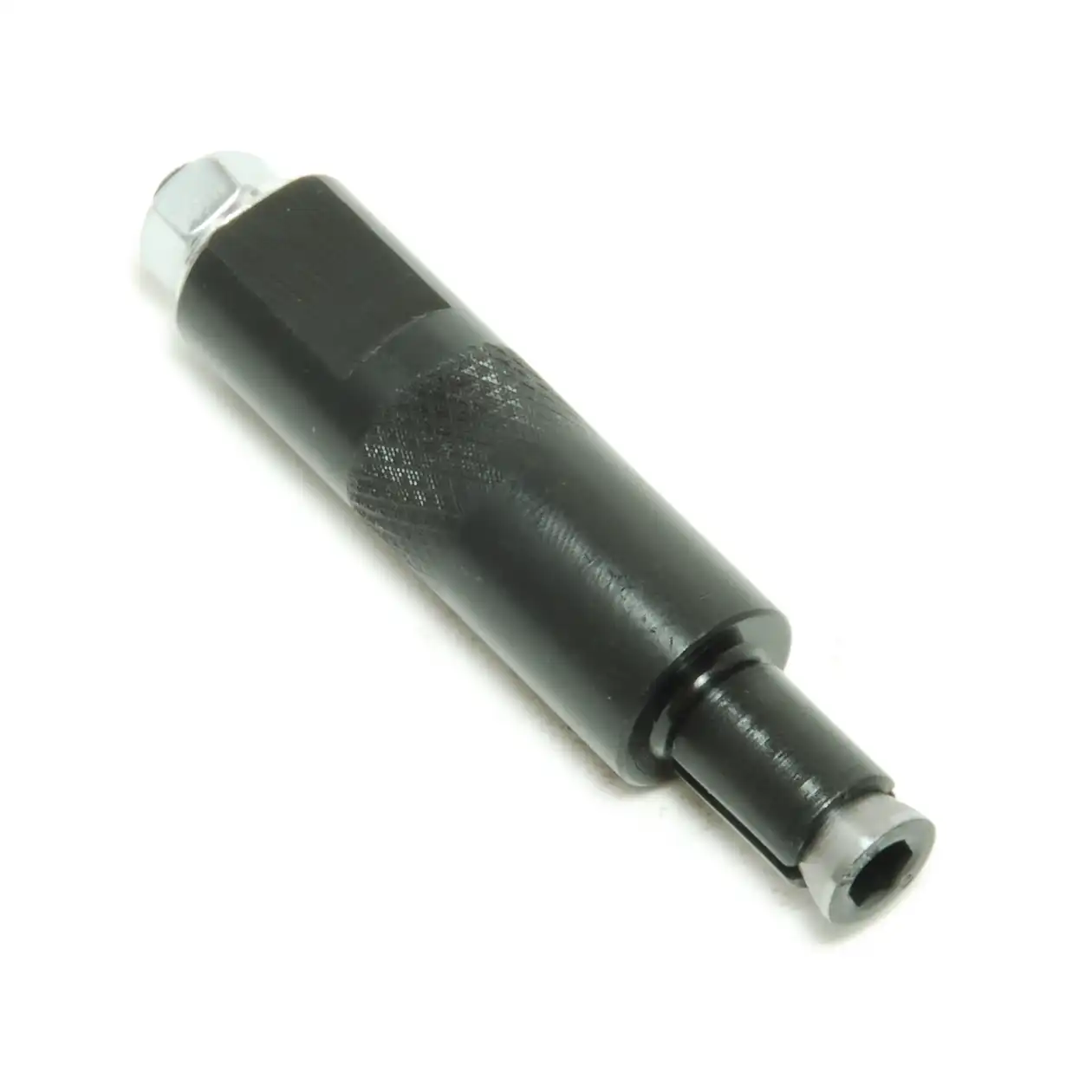

Individual extractor for removing 608 & 688 sealed bearings with 8mm inside diameter.

These bearing extractors grip the inside race of a sealed bearing, allowing the bearing to be tapped out of the hub shell or frame component. Insert the extractor into the bearing, tighten one side with a matching wrench, and the collet expands to grip the inside of the bearing. Tap the extractor & bearing out together with a punch and hammer.

All extractors are size specific! If attempting to remove a bearing of a different size than the extractor, you will permanently damage or break the extractor. If the extractor is smaller than the bearing, try using a shim between the extractor and the bearing to get the tightest fit before tightening the extractor bolt.

Bearing extractor requires the following tools:

• (1) 8mm open or box-end wrench
• (1) 10mm open end wrench
• (1) punch (diameter should be smaller than 8mm.)
• (1) hammer
