6802OB-1

€ 9,99

Article number: 6802OB-1

836572009017

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information

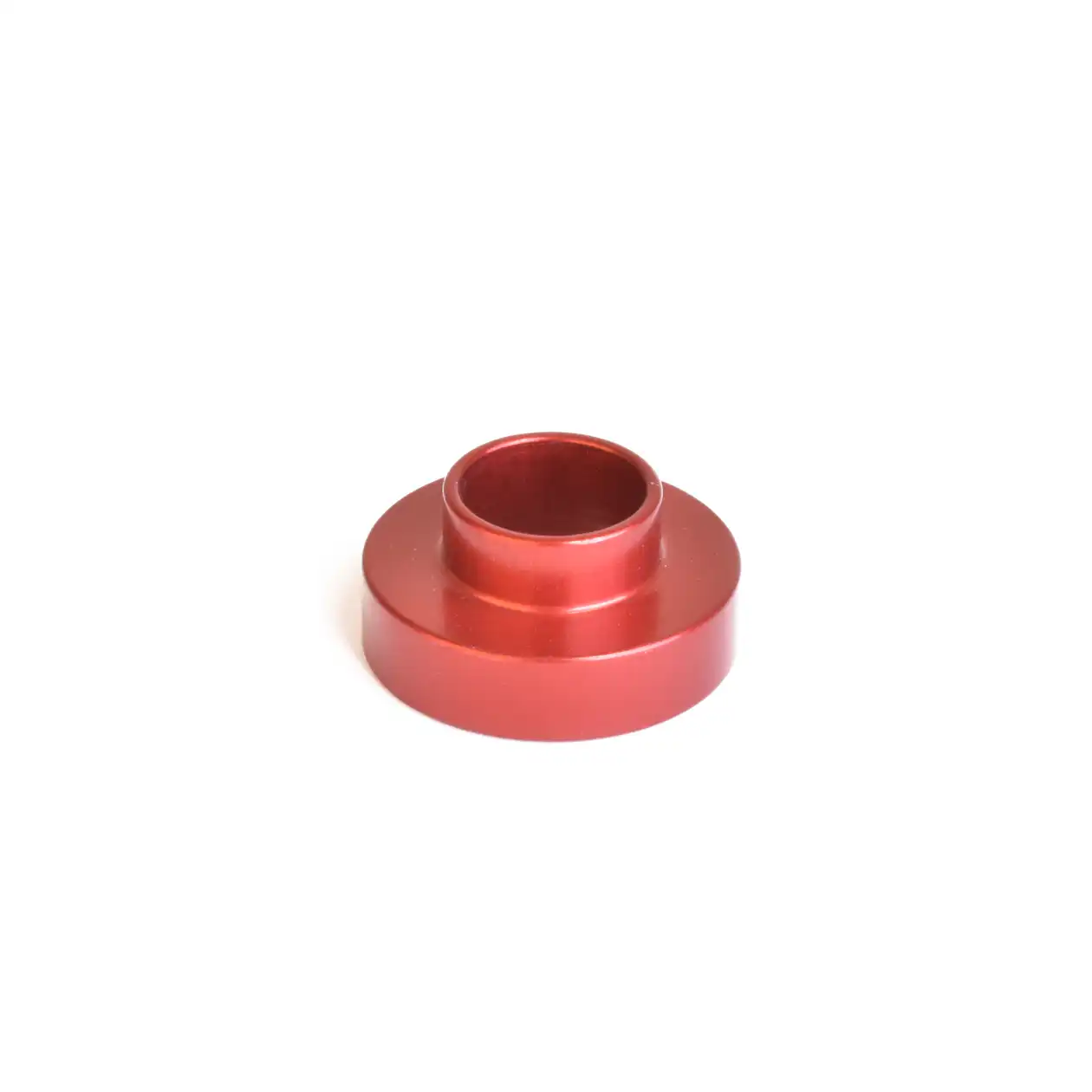

6802 Open Bore Adapter

Our 6802 open bore adapter is used to press 24x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits into the center of the sealed bearing.

• Installs: 6802 bearing
• Inner Step Outer Diameter: 14.8mm
• Outer Diameter: 23.8mm
• Thickness: 5.5mm
• Thru Hole Diameter: 0.387" (9.8mm)
• Inner hole sized to fit 3/8" ACME threaded rod
• Compatible with BP0001 and BP0005
• Machined, red anodized aluminum
• Sold individually (2 drifts required for some installations)
