6903OB

€ 9,50

Article number: 6903OB

836572009109

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

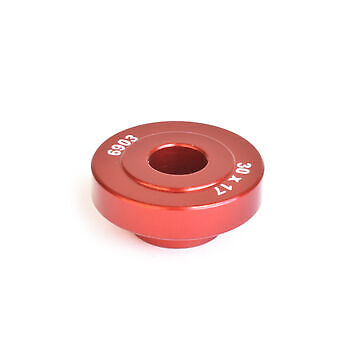

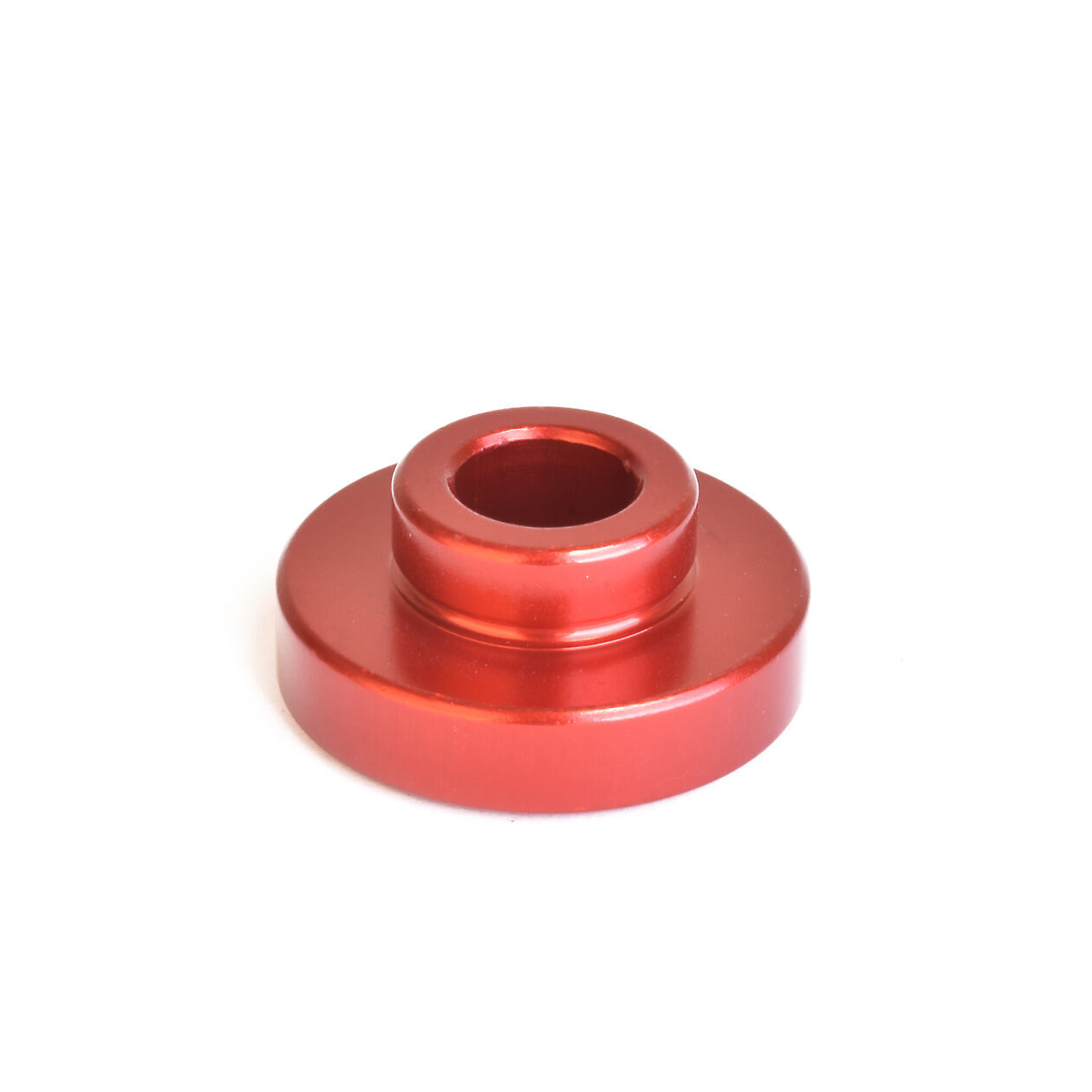

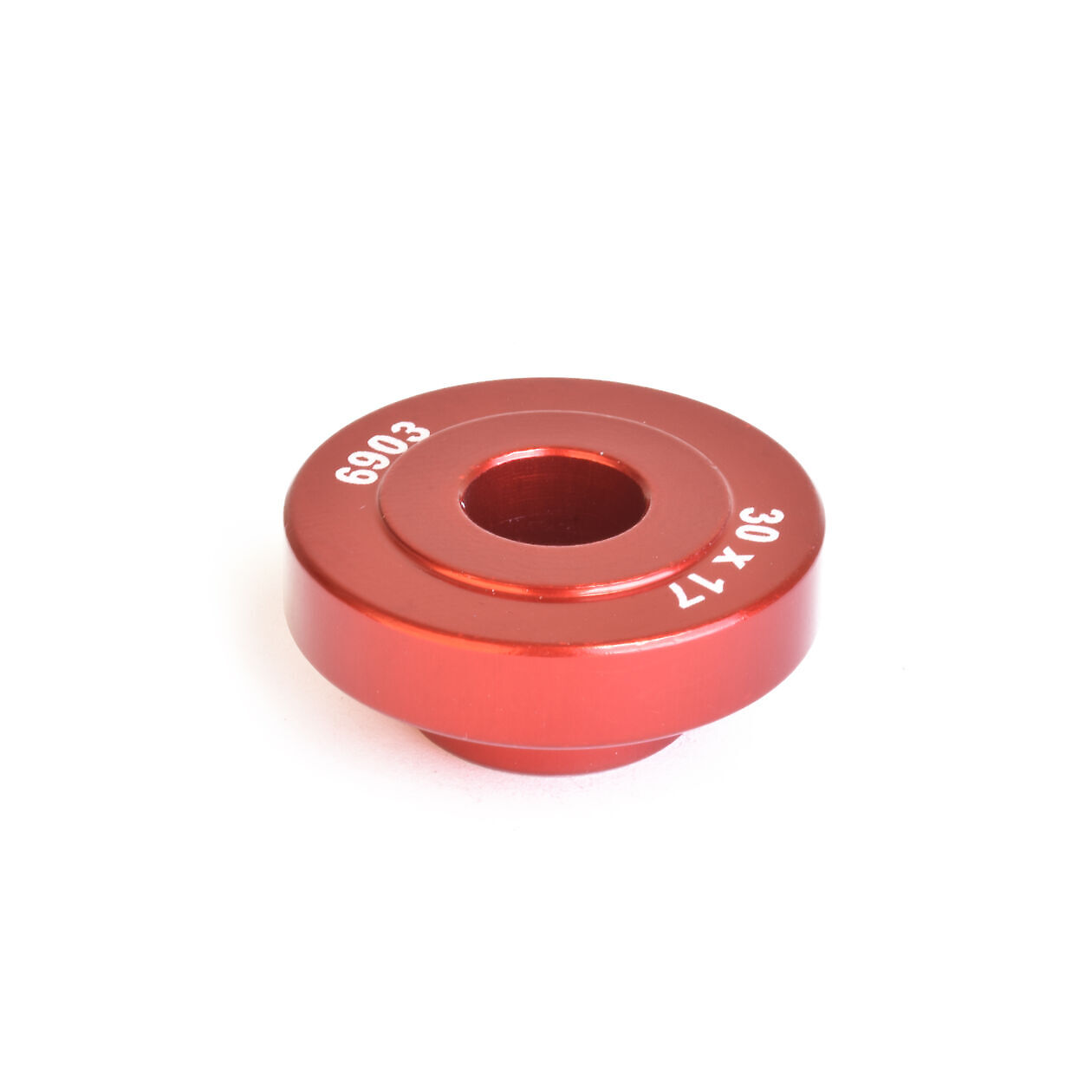

6903 Open Bore Adapter

The 6903 open bore adapter is used to press 30x17 sealed bearings. The adapter is machined with one step at 17mm OD, which fits into the center of the sealed bearing.

Installs: 6903 bearing

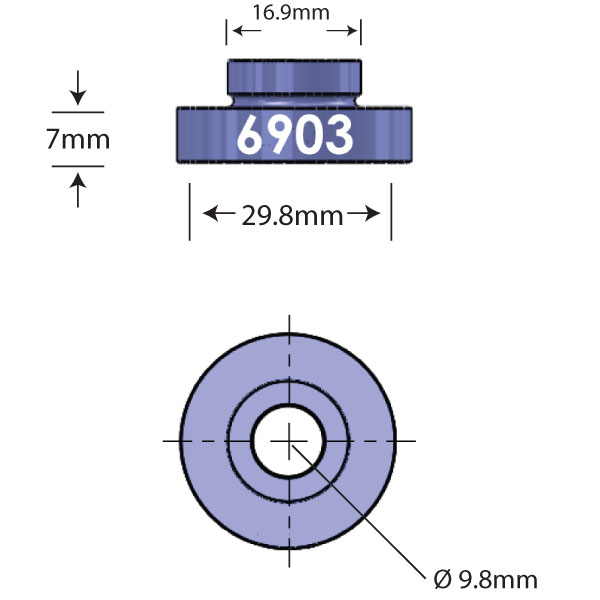

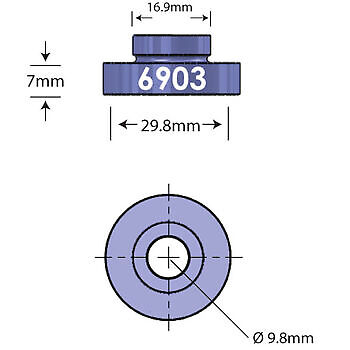

Inner Step Outer Diameter: 16.9mm
Outer Diameter: 29.8mm
Thickness: 7mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with BP0001 and BP0005
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)

Download PDF information: press-1_instr.pdf
