BB-BSA29-BB

€ 122,00

Article number: BB-BSA29-BB

811079025609

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information

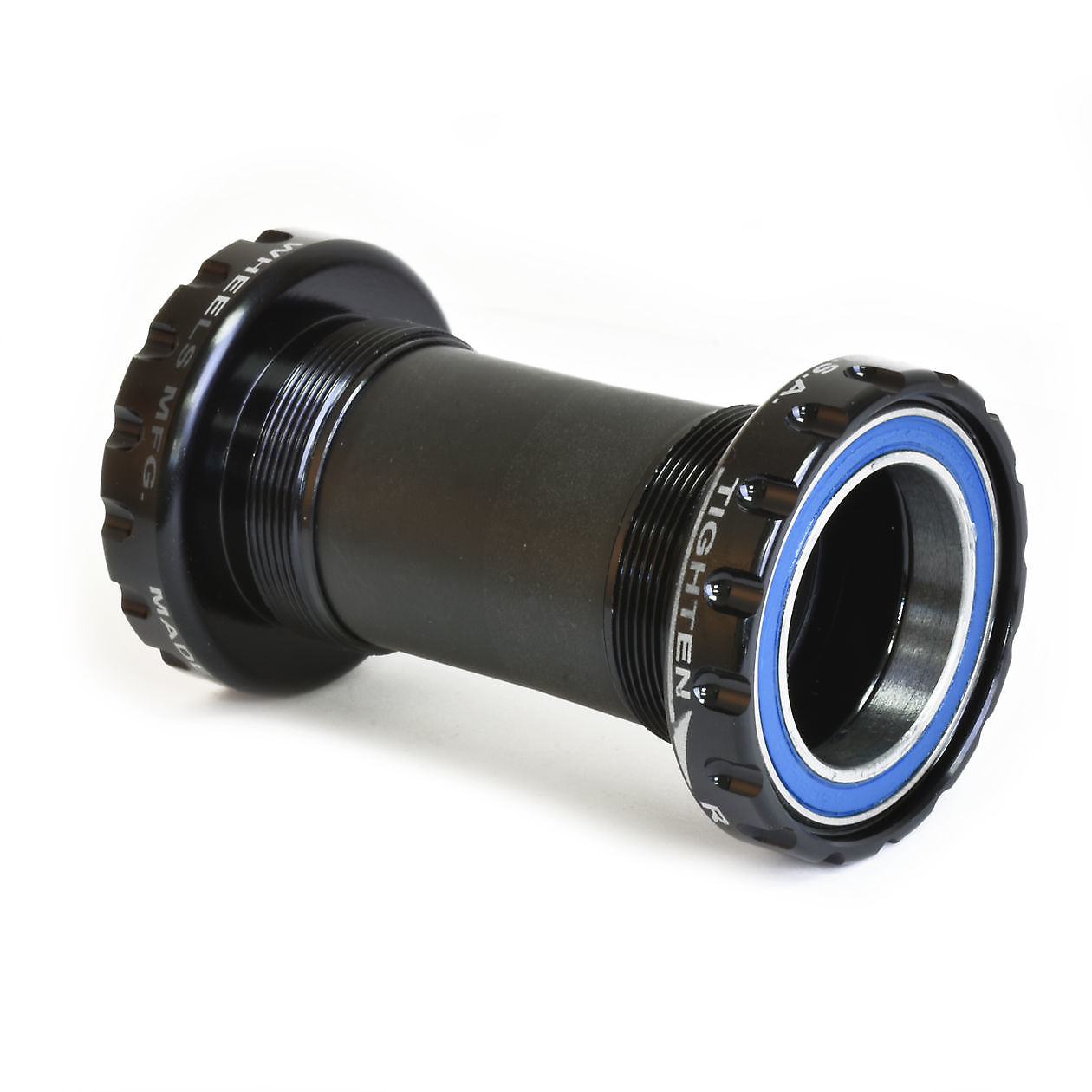

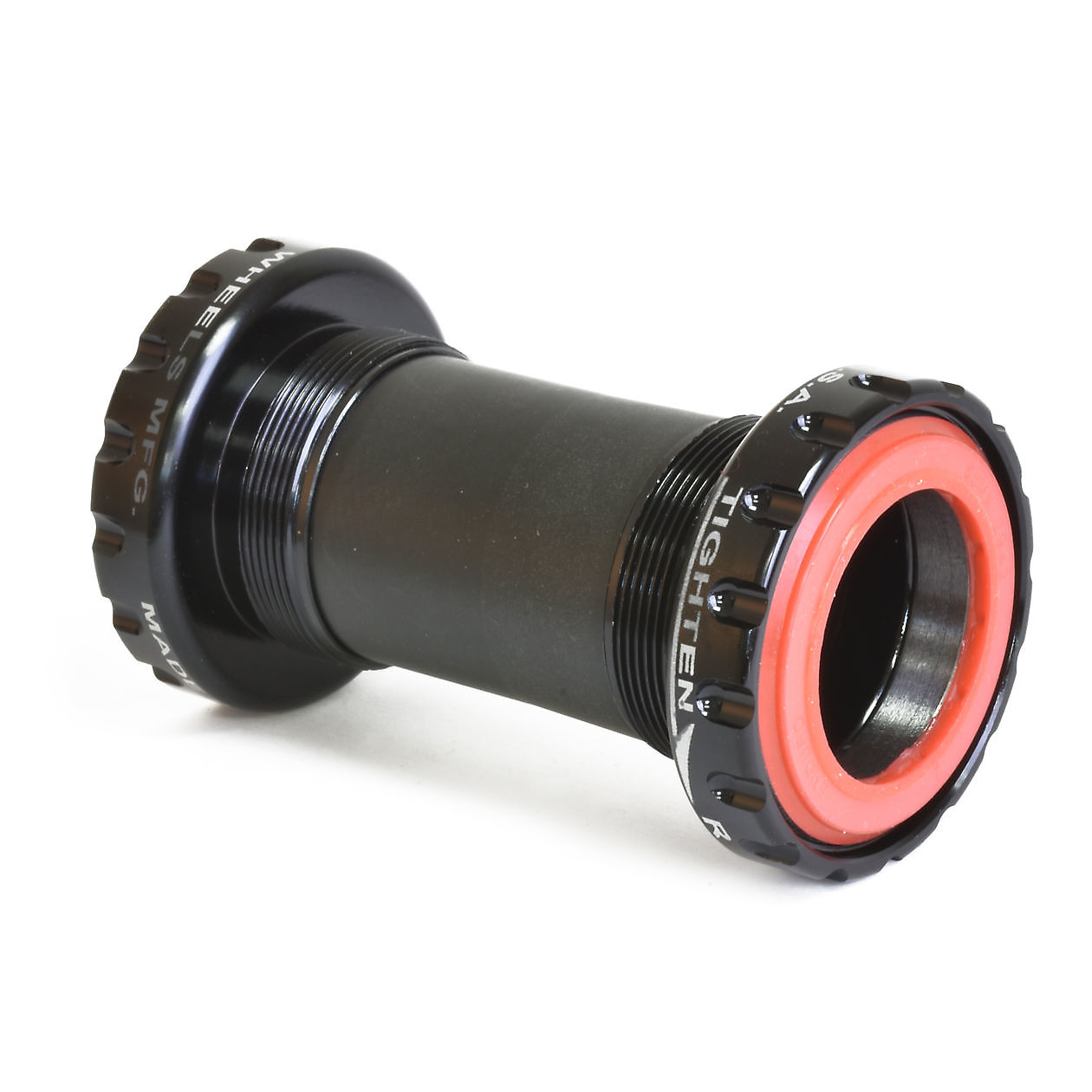

Threaded to 29mm ABEC-3 BB for SRAM DUB Compatible Cranks - Black


Run 29mm spindle SRAM DUB compatible cranks in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806/29 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.

Bottom Bracket Includes:

• BB Cups with bearings
• 2 - Silicone dust seals
• 2 - 0.5mm crank spindle spacers
• 2 - 1.0mm crank spindle spacers
• 1 - 2.5mm crank spindle spacer

• Bearings: Enduro 6806/29 ABEC-3
• Color: Black
• Bottom Bracket/Frame Interface: ISO/English or BSA Threaded (1.37 in x 24 TPI)
• Bottom Bracket Shell Width (mm): 68mm, 73mm, 100m
• Bottom Bracket Shell I.D.: 33.6-33.9 mm
• Crank Spindle Diameter: 29mm
• Tool Pattern: 48.5mm x 16-notch
• Over Bearing Width: 91.5mm in a 68mm wide shell*
• Weight: 102g
• Packaged for retail display

*Over Bearing Width Dimensions include supplied silicone dust shields.


Compatible with the following Bottom Bracket Standards and SRAM DUB compatible cranks with 29mm diameter spindle:

• ISO/English or BSA Threaded (1.37 in x 24 TPI)
• 68mm, 73mm and 100mm* BB Shell Width

* If used in a 100mm wide shell, install the cups without the center plastic center sleeve.

Download PDF information: 1726659348bb-bsa30-abec3-instructions.pdf
