BB-BSA30-AC

€ 132,00

Article number: BB-BSA30-AC

811079021922

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

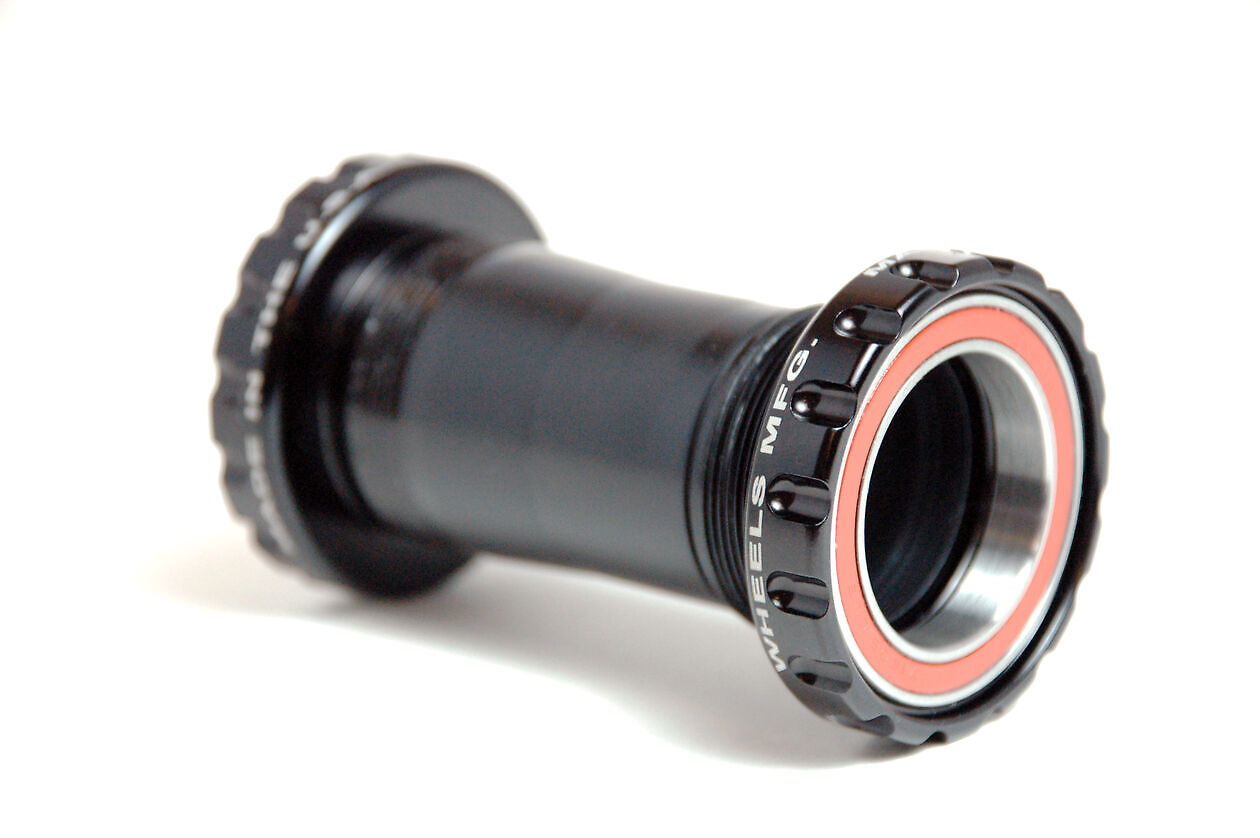

Threaded to 30mm Angular Contact BB - Black

The solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Angular Contact sealed bearings outboard of the BB shell. Fully serviceable.

Notes:

For use with 30mm diameter cranks with a spindle length of at least 104mm when used in a 68mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!

Bearings: Enduro Angular Contact
Color: Black
Bottom Bracket/Frame Interface: ISO/English or BSA Threaded (1.37 in x 24 TPI)
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 33.6-33.9 mm
Crank Spindle Diameter: 30mm
Crank Spindle Length: At least 104mm*
Over Bearing Width: 91.5mm in a 68mm wide shell*
Weight: 100g
Packaged for retail display

*Over Bearing Width Dimensions include supplied silicone dust shields.

Important: Will not work with crank spindles less than 104mm. PLEASE MEASURE YOUR CRANK SPINDLE LENGTH! This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.

ompatible with the following Bottom Bracket Standards:

ISO/English or BSA Threaded (1.37 in x 24 TPI)
68mm - 73mm BB Shell Width
Notes:

Compatible with 30mm diameter spindle cranksets with at least 104mm spindle length when used in a 68mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.

Download PDF information: 1739803641bb-bsa30-ac-instructions.pdf
