BB30-OUT-1

€ 125,00

Article number: BB30-OUT-1

811079020376

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

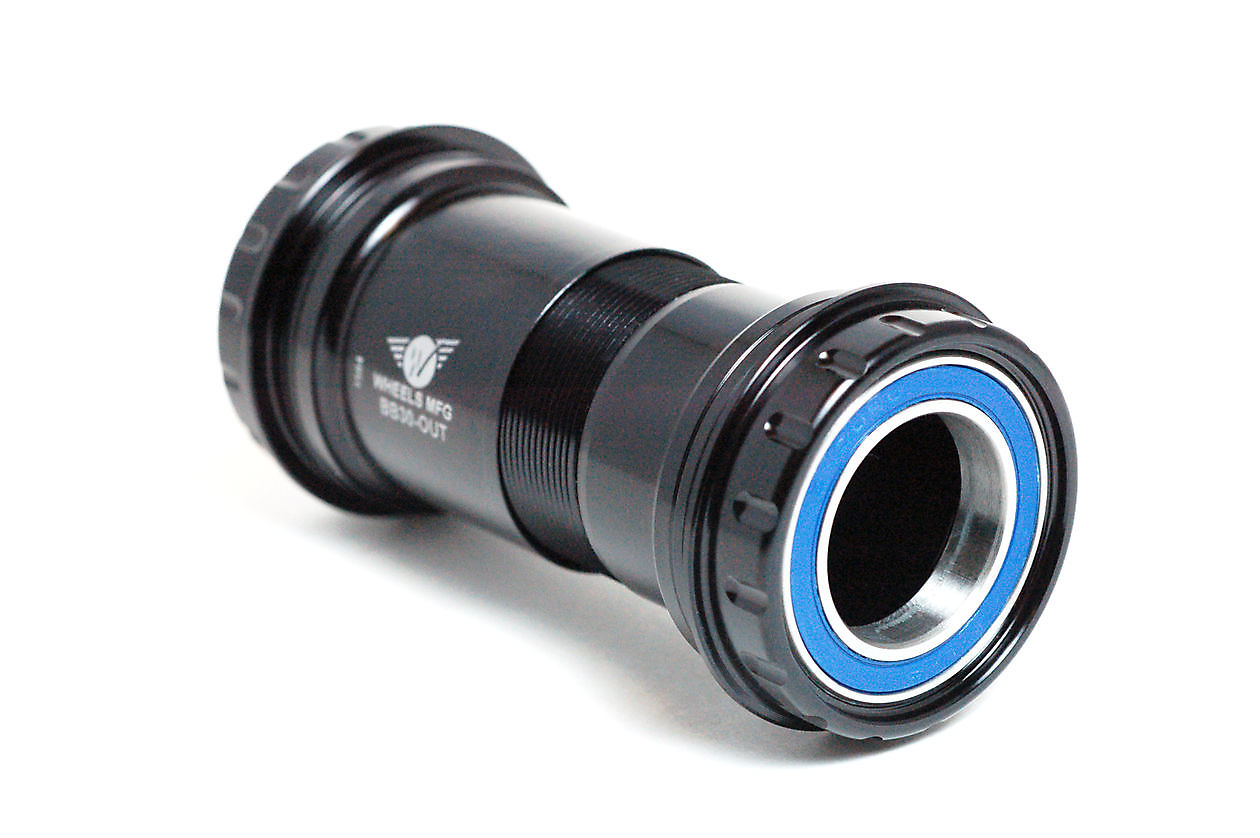

BB30 Outboard ABEC-3 BB for 24mm Cranks (Shimano) - Black
BB30 Outboard Installation

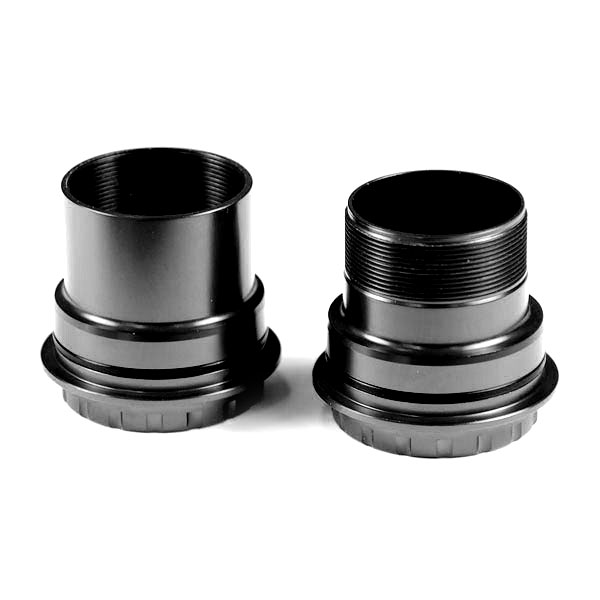

Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in BB30 (42mm ID BB shell) frames without the need for any adapters.

Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work!

Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: BB30, Specialized Alloy OSBB
Bottom Bracket Shell Width: 68mm - 73mm
Bottom Bracket Shell I.D.: 42mm
Over Bearing Width: 90.5mm in 68mm wide shell*
Crank Spindle Diameter: 24.00mm
Tool Pattern: 44mm, 16-notch
Weight: 130g
Packaged for retail display

* Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards (42mm BB shell inner diameter):

BB30
Specialized Alloy OSBB.

Compatible with 24.00mm spindle diameter cranksets.*

Download PDF information: 1727094090bb30-out-shimano-instructions-web.pdf
