BB30A-OUT-SHIM

€ 140,00

Article number: BB30A-OUT-SHIM

811079024732

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

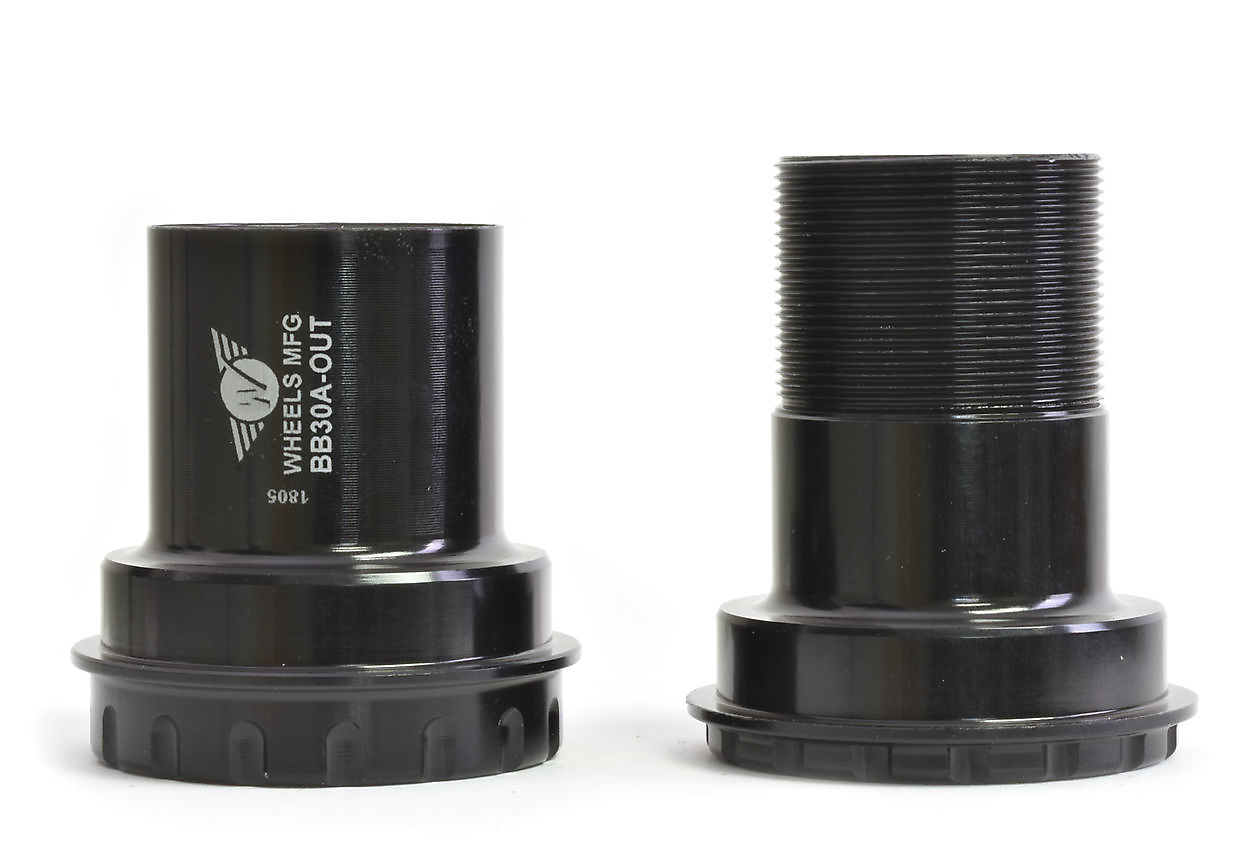

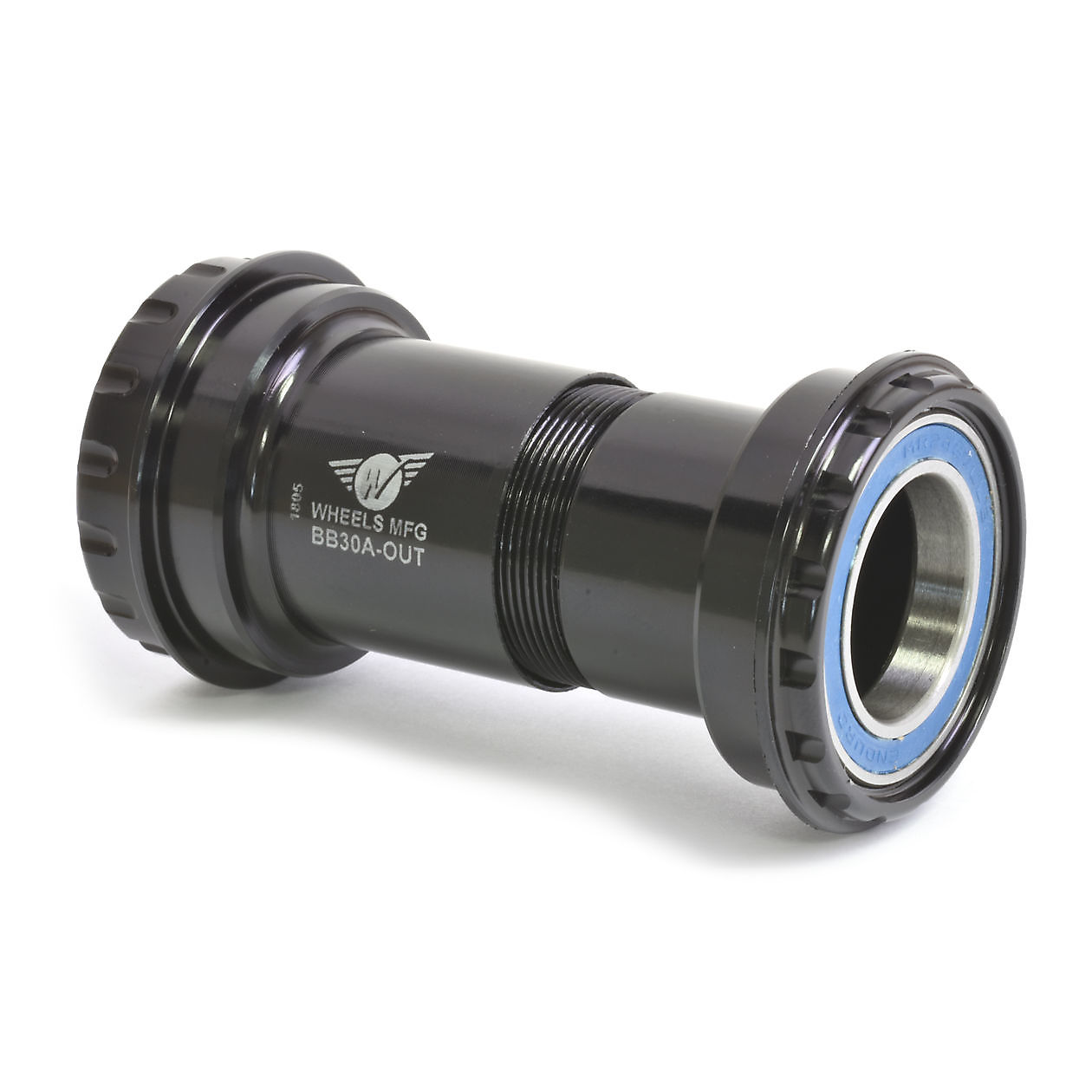

BB30A Outboard ABEC-3 BB for 24mm Cranks (Shimano) - Black

The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in Cannondale BB30A (42mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.

Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! BB30A is only used for Cannondale asymmetrical frames.

Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: Cannondale BB30A
Bottom Bracket Shell Width: 73mm
Bottom Bracket Shell I.D.: 42mm
Over Bearing Width: 91mm in 73mm wide shell*
Crank Spindle Diameter: 24.00mm
Tool Pattern: 44mm x 16 notch
Weight: 119g
Packaged for retail display

* Over Bearing Width Dimensions include supplied silicone dust shields.

ompatible with the following Bottom Bracket Standards (42mm BB shell inner diameter, 73mm shell width):

Cannondale BB30A
Compatible with 24.00mm spindle diameter cranksets.*

*Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work!

Download PDF information: 1727689990bb30a-out-instructions-web.pdf
