BB86-OUT-13

Product information

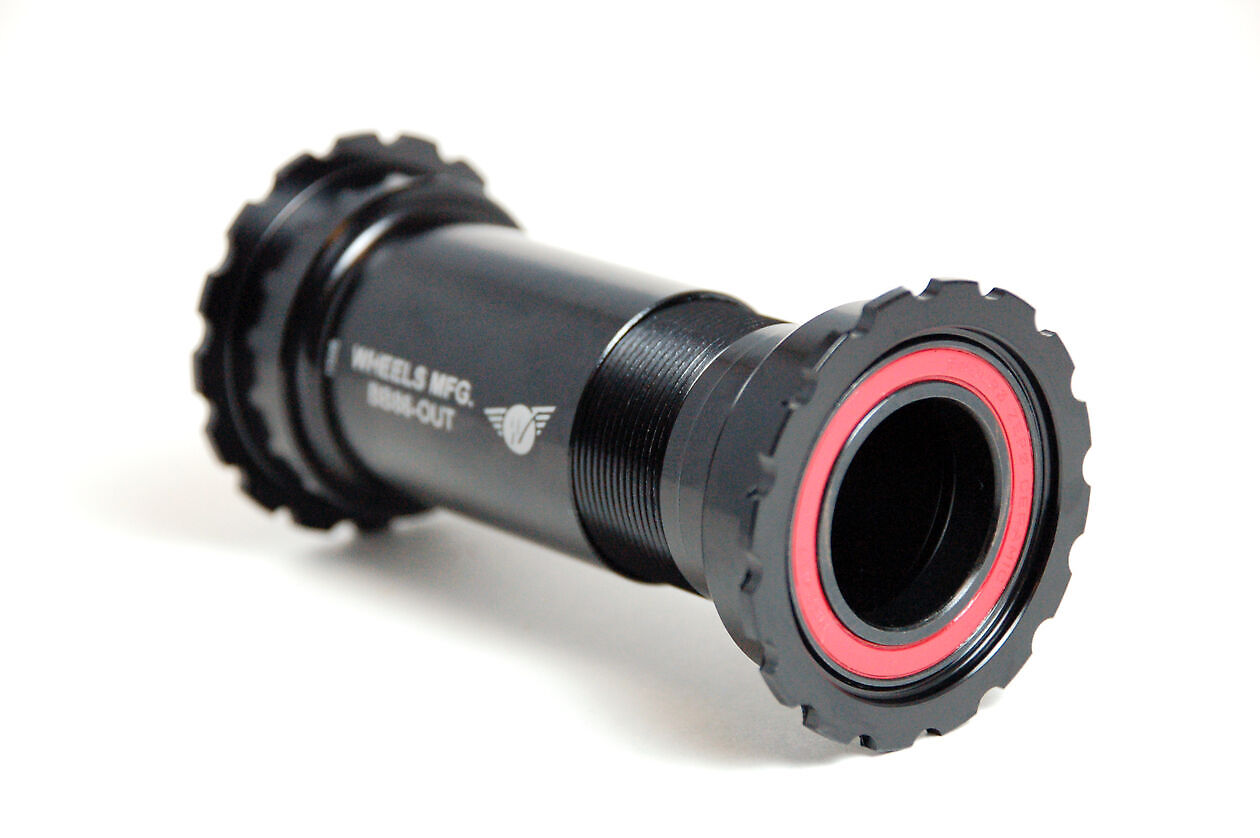

BB86/92 Thread Together ZERØ Ceramic BB for 24mm (Shimano) Cranks - Black


Threaded BB for BB86, BB92 and PF90 frames and 24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

• Bearings: Enduro ZERØ Ceramic Hybrid
• Color: Black
• Bottom Bracket/Frame Interface: BB86, BB92, PF90
• Bottom Bracket Shell Width: 86mm - 92mm
• Bottom Bracket Shell I.D.: 41mm
• Over Bearing Width: 93mm in 86.5mm wide shell*
• Crank Spindle Diameter: 24.00mm
• Tool Pattern: 48.5mm x 16 notch
• Weight: 102g

Packaged for retail display
* Over Bearing Width Dimensions include supplied silicone dust shields.

Includes:

• 2 - Silicone Dust Seal, 24mm ID

Compatible with the following Bottom Bracket Standards (41mm BB shell inner diameter, 86mm - 92mm width):

• BB86
• BB92
• PF90 (Trek)

Download PDF information: 1744711894bb86-out-24mm-instructions-web.pdf
