BB86-OUT-AC

€ 153,00

Article number: BB86-OUT-AC

811079021953

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information

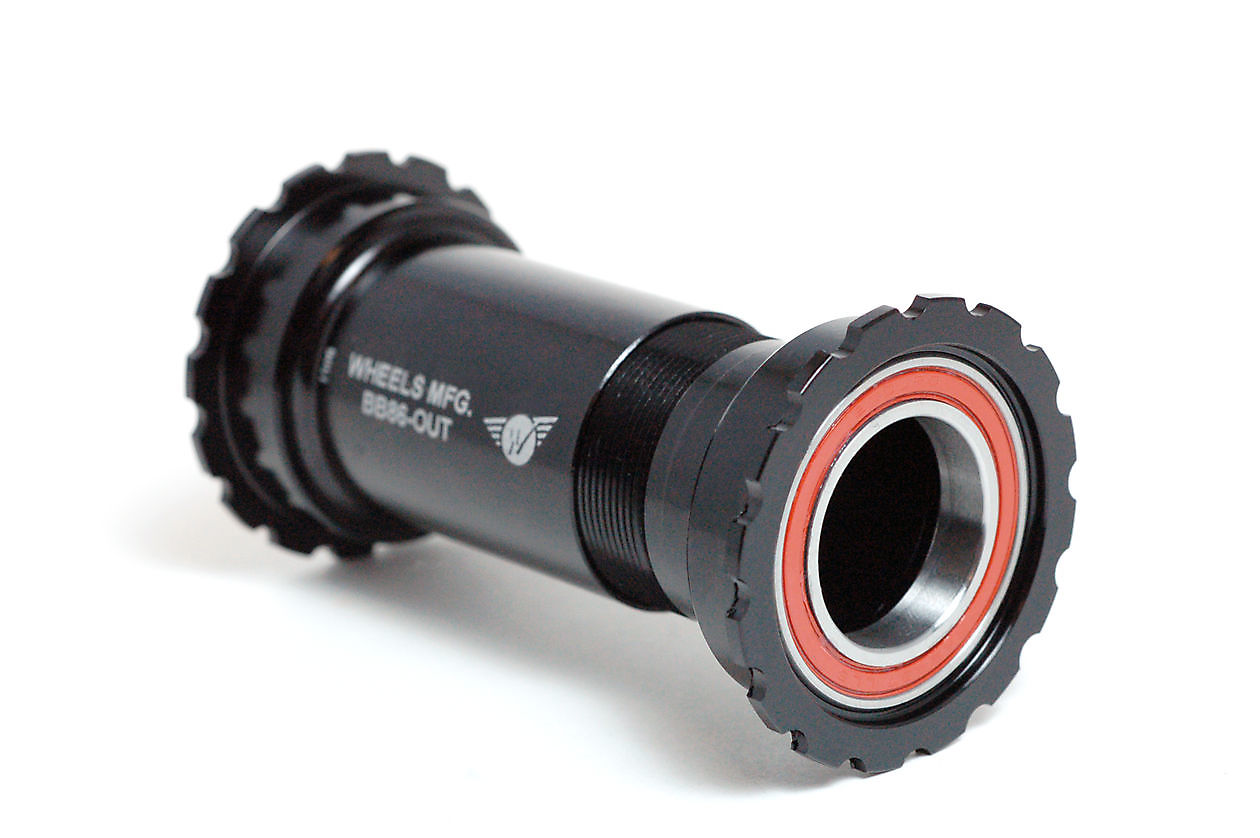

BB86/92 Thread Together Angular Contact BB for 24mm (Shimano) Cranks - Black
Installation Instructions

Threaded BB for BB86, BB92 and PF90 frames and 24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

• Bearings: Enduro Angular Contact
• Color: Black
• Bottom Bracket/Frame Interface: BB86, BB92, PF90
• Bottom Bracket Shell Width: 86mm - 92mm
• Bottom Bracket Shell I.D.: 41mm
• Over Bearing Width: 93mm in 86.5mm wide shell*
• Crank Spindle Diameter: 24.00mm
• Tool Pattern: 48.5mm x 16 notch
• Weight: 106g
• Packaged for retail display

* Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards (41mm BB shell inner diameter, 86mm - 92mm width):

• BB86
• BB92
• PF90 (Trek)

Compatible with 24.00mm spindle diameter cranksets.

Download PDF information: 1727095150bb86-out-24mm-instructions-web.pdf
