BB86-OUT-BB

€ 125,00

Article number: BB86-OUT-BB

811079022165

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information

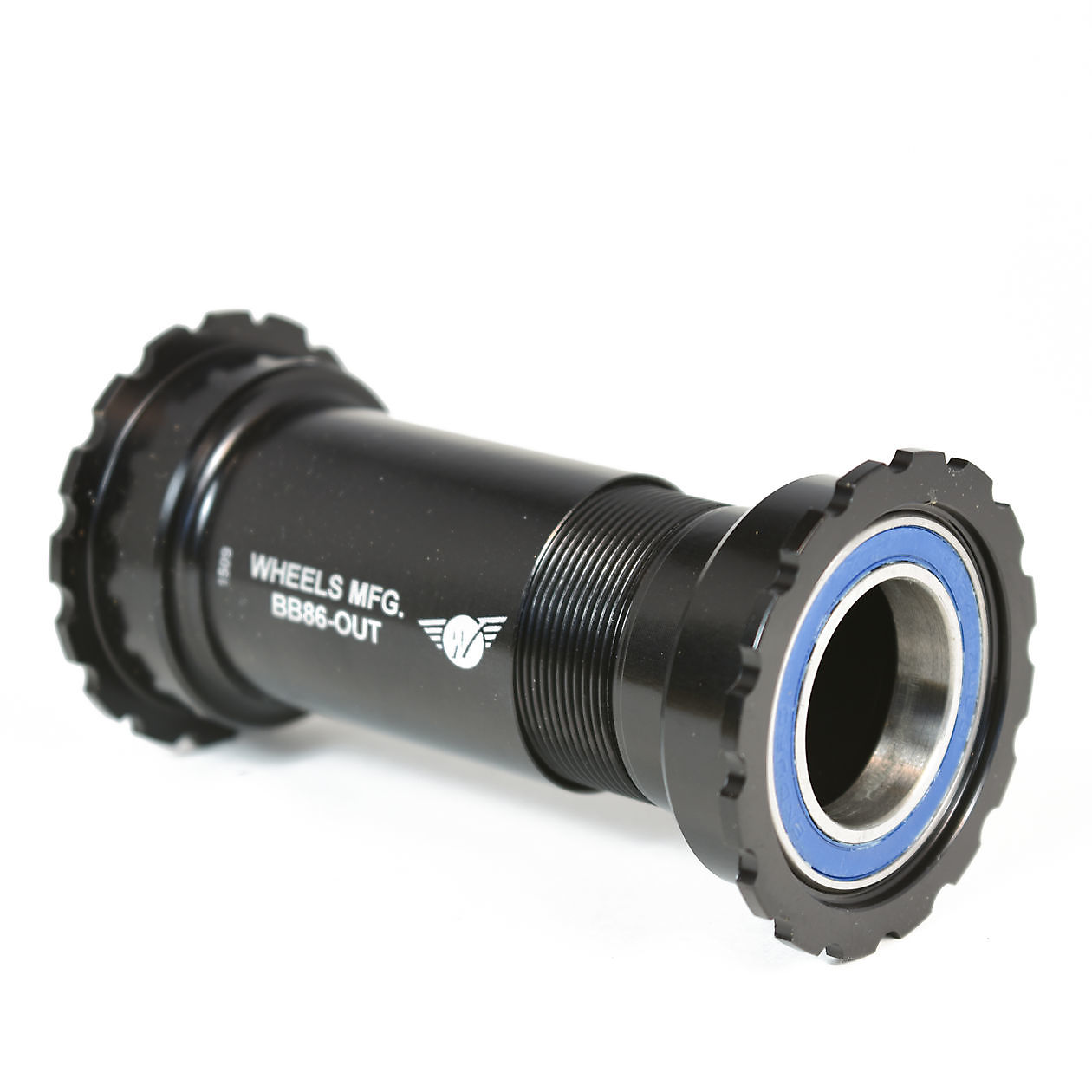

BB86/92 Thread Together ABEC-3 BB for 24mm (Shimano) Cranks - Black

Threaded BB for BB86, BB92 and PF90 frames and 24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

Bearings: Enduro ABEC-3

• Color: Black
• Bottom Bracket/Frame Interface: BB86, BB92, PF90
• Bottom Bracket Shell Width: 86mm - 92mm
• Bottom Bracket Shell I.D.: 41mm
• Over Bearing Width: 93mm in 86.5mm wide shell*
• Crank Spindle Diameter: 24.00mm
• Tool Pattern: 48.5mm x 16 notch
• Weight: 106g
• Packaged for retail display

* Over Bearing Width Dimensions include supplied silicone dust shields.

Includes:

• 2 - Silicone Dust Seal, 24mm ID
• 2 - 0.5mm, 24mm ID Crank Spindle Spacer
• 2 - 1.0mm, 24mm ID Crank Spindle Spacer

Compatible with the following Bottom Bracket Standards (41mm BB shell inner diameter, 86mm - 92mm width):

• BB86
• BB92
• PF90 (Trek)
• Compatible with 24.00mm spindle diameter cranksets.

Download PDF information: 1726227040bb86-out-24mm-instructions-web.pdf
