BB86-OUT-SRAM7

€ 128,00

Article number: BB86-OUT-SRAM7

811079022172

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

BB86-OUT-SRAM7

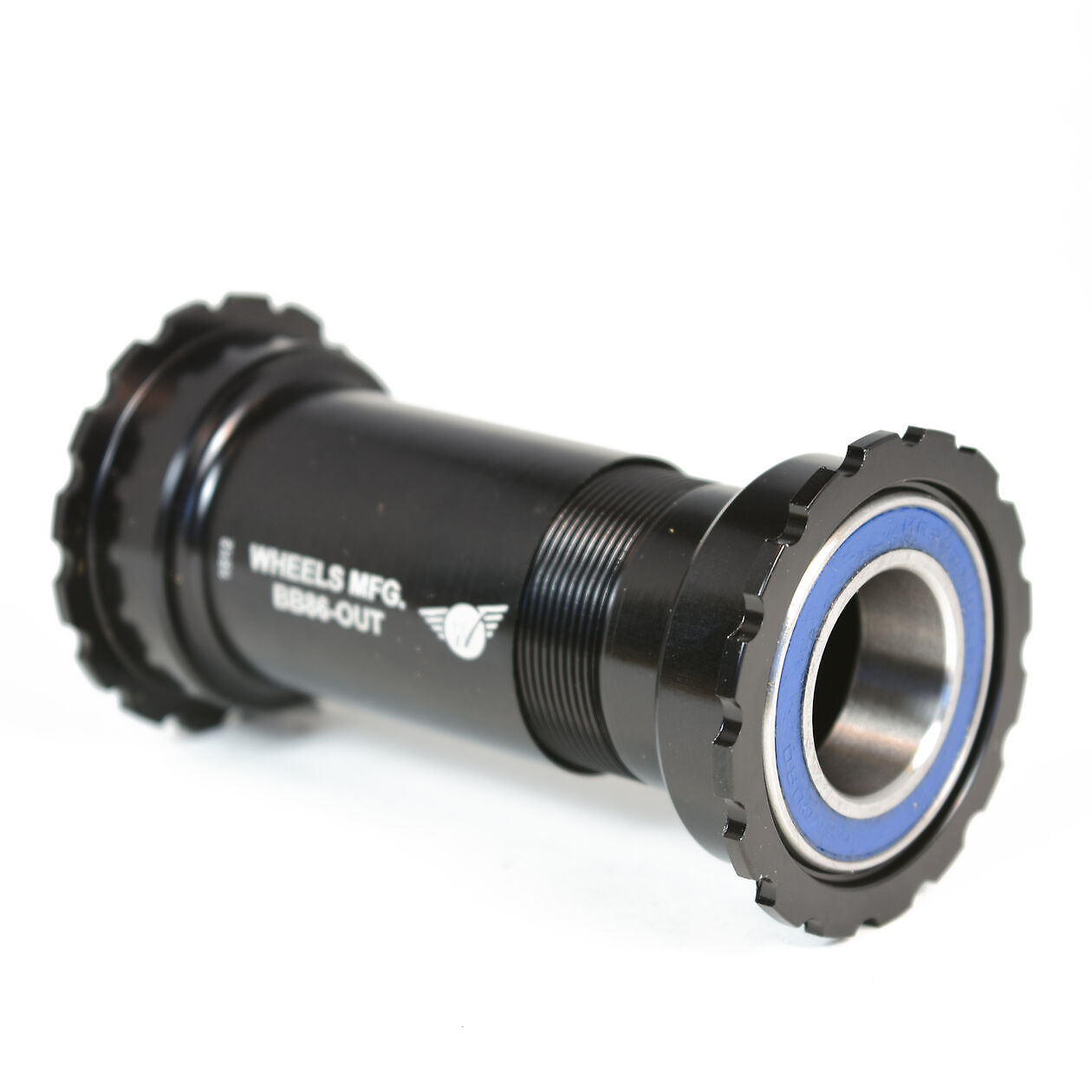

BB86/92 Thread Together ABEC-3 BB for 24/22mm (SRAM) Cranks - Black
Installation Instructions

Threaded BB for BB86, BB92 and PF90 frames and 22/24mm diameter spindle (GXP) cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: BB86, BB92, PF90
Bottom Bracket Shell Width: 86mm - 92mm
Bottom Bracket Shell I.D.: 41mm
Over Bearing Width: 93mm in 86.5mm wide shell*
Crank Spindle Diameter: 22/24mm
Tool Pattern: 48.5mm x 16 notch
Weight: 121g
Packaged for retail display

* Over Bearing Width Dimensions include supplied silicone dust shields.

Includes:

1 - Silicone Dust Seal, 24mm ID Drive Side
1 - Silicone Dust Seal, 22mm ID Non-drive Side
1 - 24MM Wave Washer
2 - 0.5mm, 24mm ID Crank Spindle Spacer
2 - 1.0mm, 24mm ID Crank Spindle Spacer

Compatible with the following Bottom Bracket Standards (41mm BB shell inner diameter, 86mm - 92mm width):

BB86
BB92
PF90 (Trek)

Compatible with 22/24mm spindle diameter GXP cranksets.

Notes:

Wheels Mfg BB86 thread-together BB for use with 24/22mm spindle cranks will not work with the following Quarq / SRAM powermeters: Elsa, Riken, S975, S2275, CinQo Saturn, Saturn2 and Eagle.

Download PDF information: 1738337118bb86-out-gxp-instructions-web.pdf
