BB86-OUT-SRAMAC

€ 154,00

Article number: BB86-OUT-SRAMAC

811079021960

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information

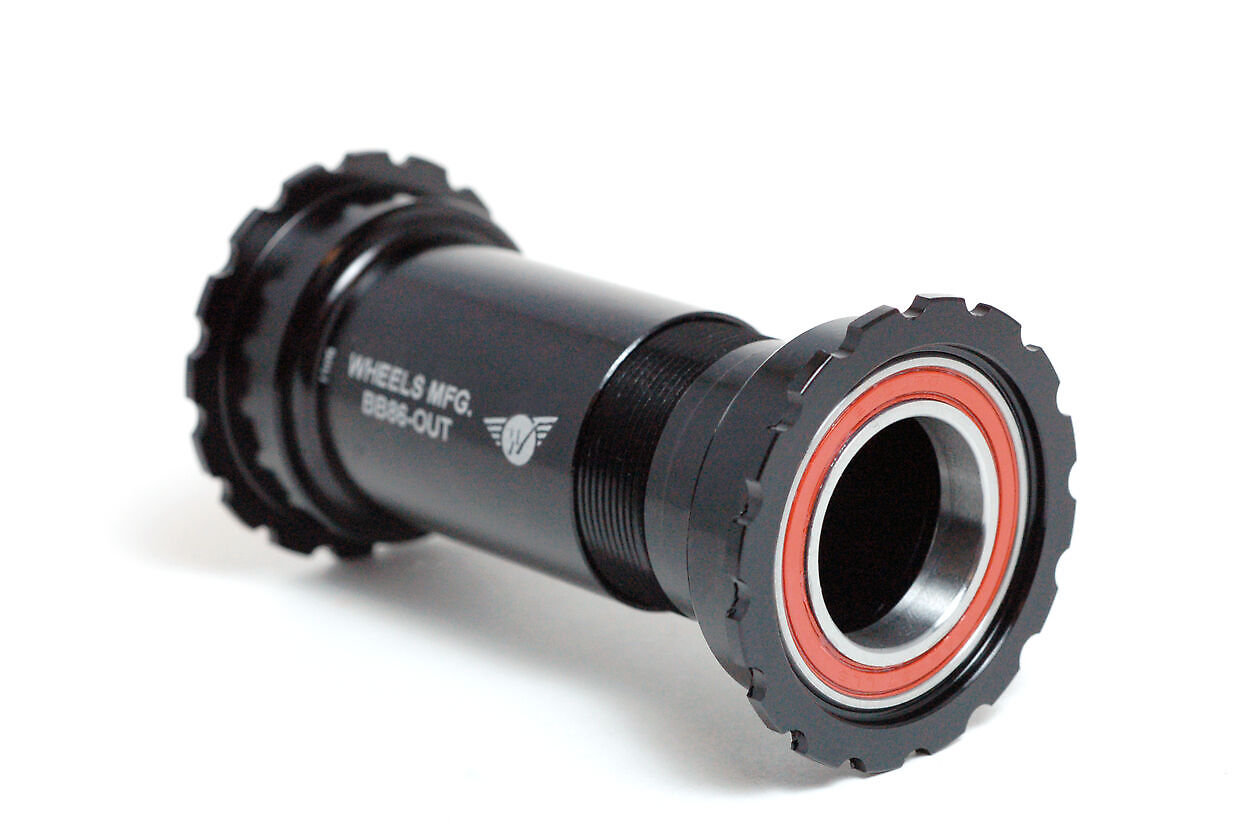

BB86/92 Thread Together Angular Contact BB for 24/22mm (SRAM) Cranks - Black

Threaded BB for BB86, BB92 and PF90 frames and 22/24mm diameter spindle (GXP) cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

• Drive Side Bearing: Enduro Angular Contact
• Non-Drive Side Bearing: Enduro ABEC-3
• Color: Black
• Bottom Bracket/Frame Interface: BB86, BB92, PF90
• Bottom Bracket Shell Width: 86mm - 92mm
• Bottom Bracket Shell I.D.: 41mm
• Over Bearing Width: 93mm in 86.5mm wide shell*
• Crank Spindle Diameter: 22/24mm
• Tool Pattern: 48.5mm x 16 notch
• Weight: 118g
• Packaged for retail display

* Over Bearing Width Dimensions include supplied silicone dust shields.

Includes:

• 1 - Silicone Dust Seal, 24mm ID Drive Side
• 1 - Silicone Dust Seal, 22mm ID Non-drive Side
• 1 - 24MM Wave Washer
• 2 - 0.5mm, 24mm ID Crank Spindle Spacer
• 2 - 1.0mm, 24mm ID Crank Spindle Spacer

Compatible with the following Bottom Bracket Standards (41mm BB shell inner diameter, 86mm - 92mm width):
• BB86
• BB92
• PF90 (Trek)

Compatible with 22/24mm spindle diameter GXP cranksets.

Download PDF information: 1729601020bb86-out-gxp-instructions-web.pdf
