BBGAUGE

€ 26,95

Article number: BBGAUGE

811079026163

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

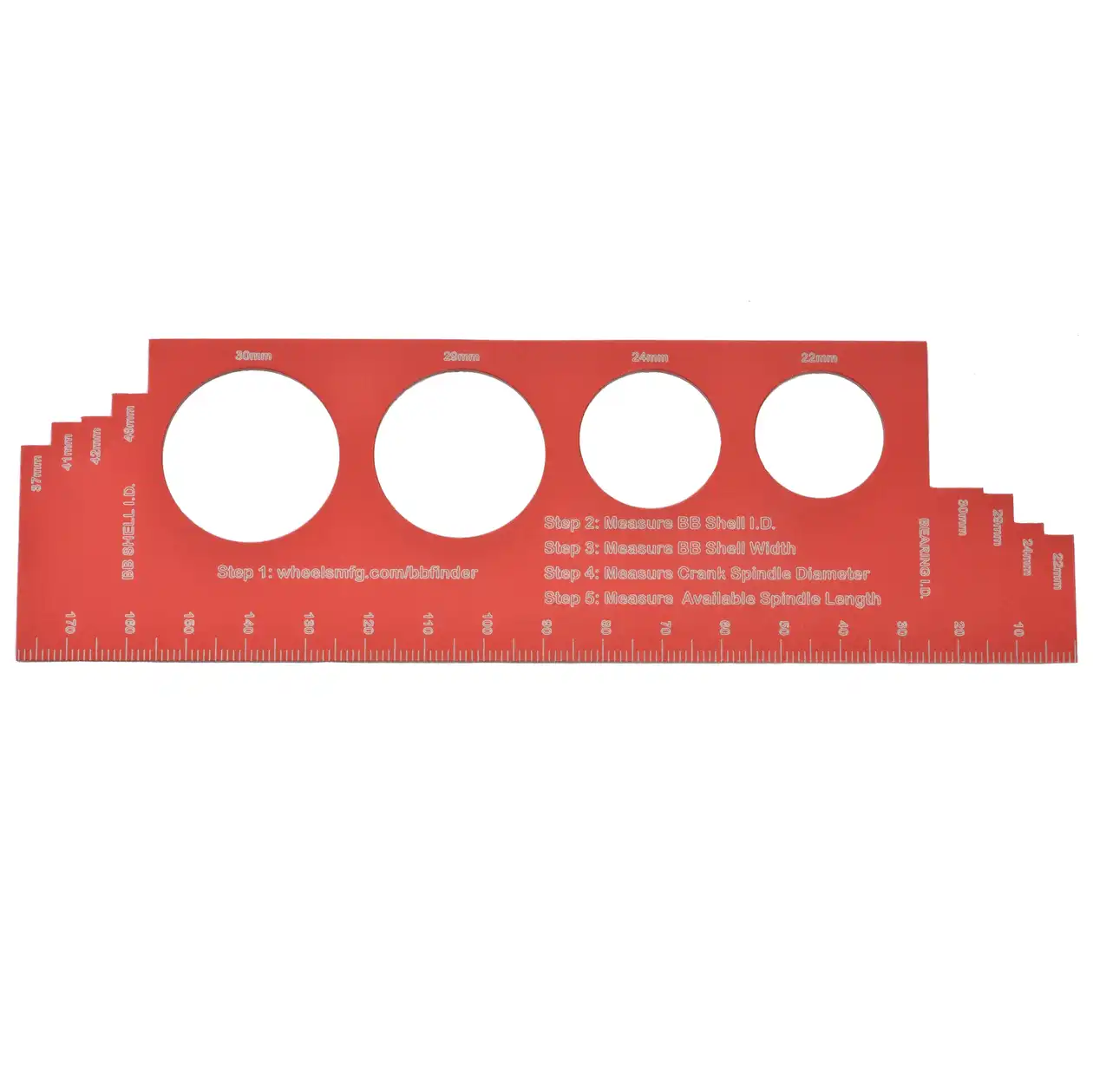

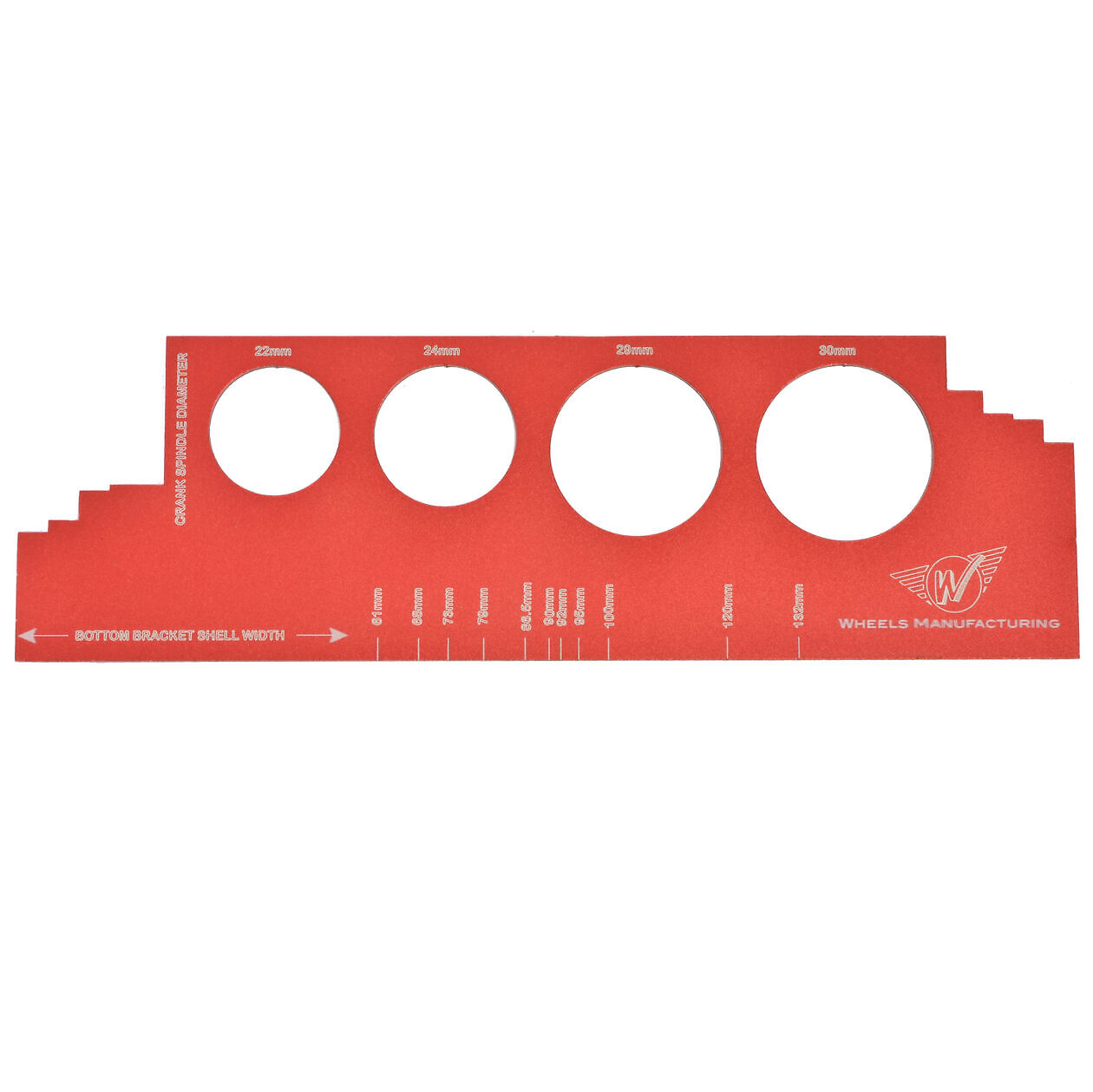

Bottom Bracket Gauge
The Bottom Bracket Gauge Tool was designed to provide all the necessary measurements to identify the proper bottom bracket for a specific bike configuration. The gauge can measure:

bottom bracket width
bottom bracket shell inner diameter
crank spindle length
crank spindle diameter
bearing inner diameter

A metric scale runs along the long edges for measuring bottom bracket shell width and crank spindle lengths. Durable red anodized aluminum with laser etching. Overall size 7" x 3" x 0.125".

We took the guess work out of finding a bottom bracket. Get all your measurements with the Bottom Bracket Gauge

Gauges for the following crank spindle diameters:
• 22mm
• 24mm
• 29mm
• 30mm
Gauges for the following bearing inner diameters:
• 22mm
• 24mm
• 29mm
• 30mm
Gauges for the following bottom bracket shell inner diameters:
• 37mm
• 41mm
• 42mm
• 46mm
Ruler to measure bottom bracket shell width up to 132mm:
• 61mm
• 68mm
• 73mm
• 79mm
• 86.5mm
• 90mm
• 92mm
• 95mm
• 100mm
• 120mm
• 132mm
Ruler to measure crank spindle length up to 180mm
