BP0016

€ 9,50

Article number: BP0016

811079027191

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

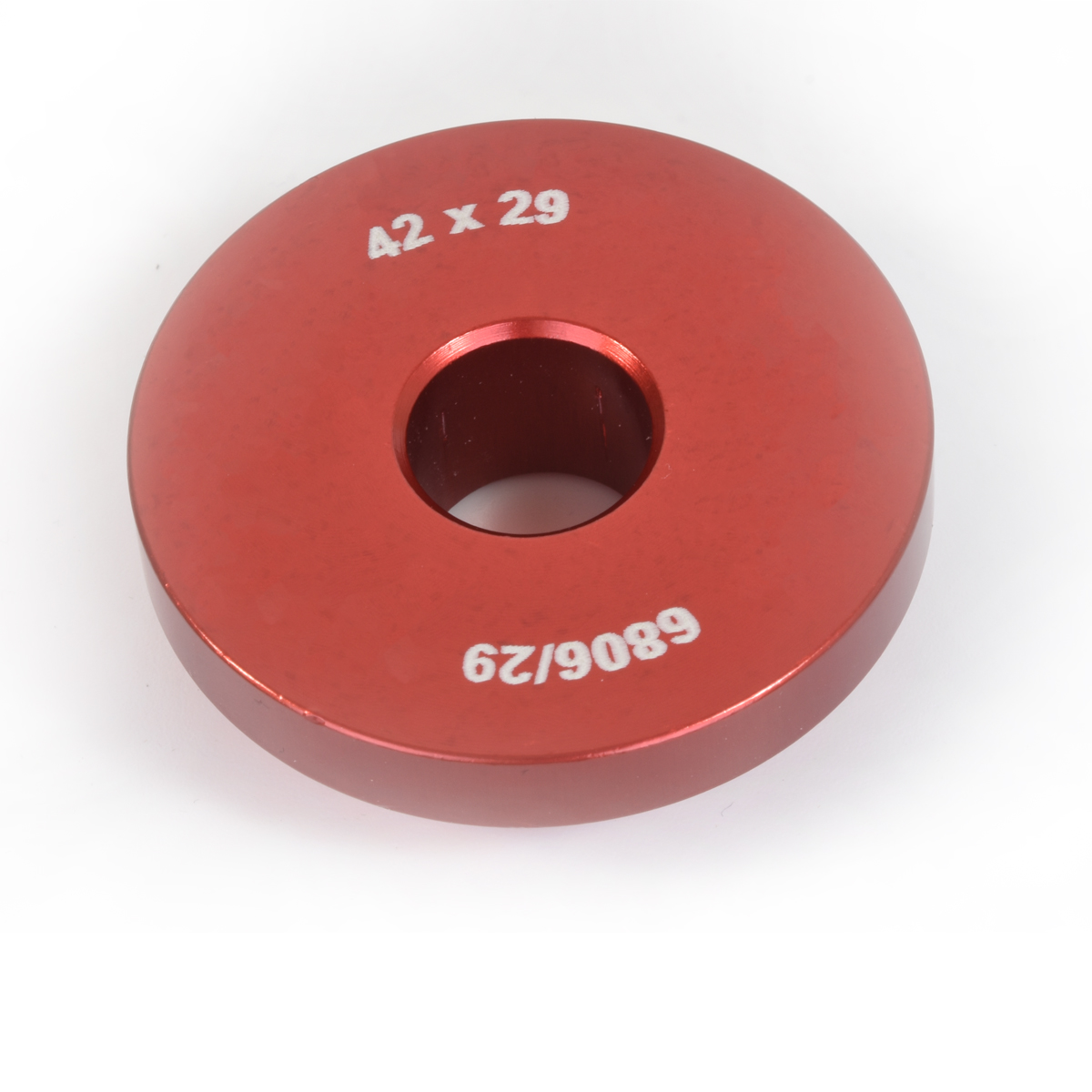

29MM x 42MM Open Bore Adapter For Half Inch Rod

29mm open bore adapter is used to press 29mm x 42mm (DUB Compatible) sealed bearings. The adapter is machined with one step at 29mm OD, which fits into the center of the sealed bearing. Will press in Wheels Mfg SRAM DUB compatible bottom bracket cups. 1/2" thru hole for use with Wheels Mfg Bottom Bracket Press BP0006, BP0007

Installs: 29X42 (DUB compatible) bearing
Inner Step Outer Diameter: 41.8mm
Outer Diameter: 28.9mm
Thru Hole Diameter: 12.8mm (1/2")
Thickness: 7mm
Compatible with BP0006 and BP0007.
Machined, red anodized aluminum
Sold individually

29SRAM-OB is designed specifically to press in 6806/29 sealed bearings and will also press in Wheels Mfg SRAM DUB compatible bottom brackets. May not be suitable for pressing in other brand\'s DUB compatible bottom brackets. If used with other brand BBs, make sure the adapter is pushing on either the bearing outer race, or the BB cup itself. Do not push on the bearing seal.

29SRAM-OB adapter will work with the follow press handles with 1/2" threaded rods:

Bottom Bracket Press Pro Install Kit - BP0007
Bottom Bracket Press Essential Kit - BP0006

Will fit on BP0001 or BP0005 handles/rod, but not advised due to the different thru hole sizes.
