BSABB-PRX

€ 108,00

Article number: BSABB-PRX

811079028983

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information

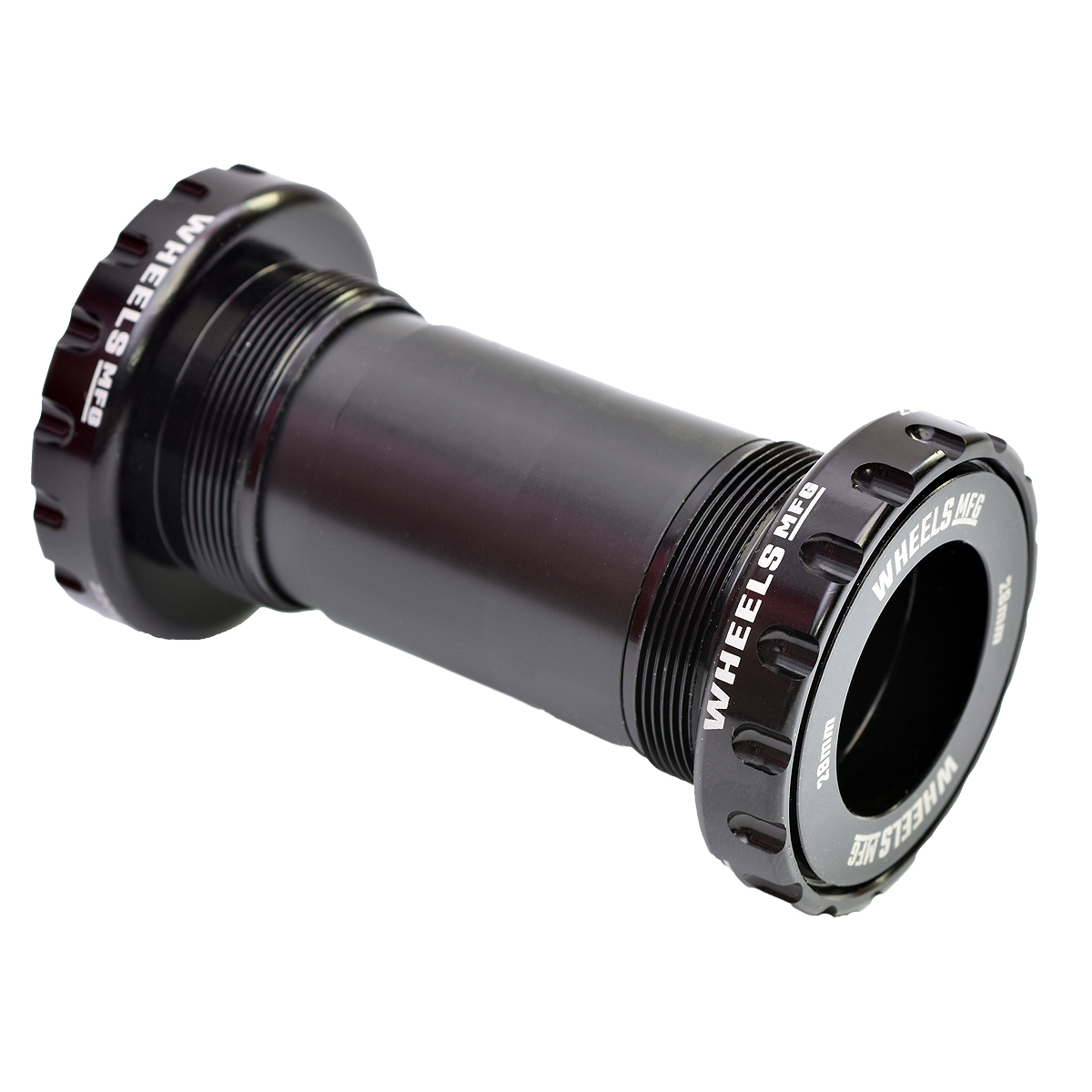

Threaded to M30 28-30mm ABEC-3 BB for Praxis - Compatible Cranks

Run M30 28/30mm spindle Praxis - compatible cranks in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.



Bottom Bracket Includes:

• BB Cups with bearings
• 2 - Silicone dust seals
• 2 - 0.5mm crank spindle spacers
• 2 - 1.0mm crank spindle spacers
• 1 - 2.5mm crank spindle spacer
• 1 - 28mm insert

• Bearings: ABEC-3
• Color: Green
• Bottom Bracket/Frame Interface: ISO/English or BSA Threaded (1.37 in x 24 TPI)
• Bottom Bracket Shell Width (mm): 68mm, 73mm, 100m
• Bottom Bracket Shell I.D.: 33.6-33.9 mm
• Crank Spindle Diameter: 28/30mm
• Tool Pattern: 48.5mm x 16-notch
• Over Bearing Width: 91.5mm in a 68mm wide shell*
• Weight: 102g
• Packaged for retail display

*Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards and PRAXIS compatible cranks with 28/30mm diameter spindle:

• ISO/English or BSA Threaded (1.37 in x 24 TPI)
• 68mm, 73mm and 100mm* BB Shell Width

* If used in a 100mm wide shell, install the cups without the center plastic center sleeve.

Download PDF information: 1744792902bb-bsa30-ac-instructions.pdf
