PF30A-OUT-SHIM

€ 153,00

Article number: PF30A-OUT-SHIM

811079024756

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

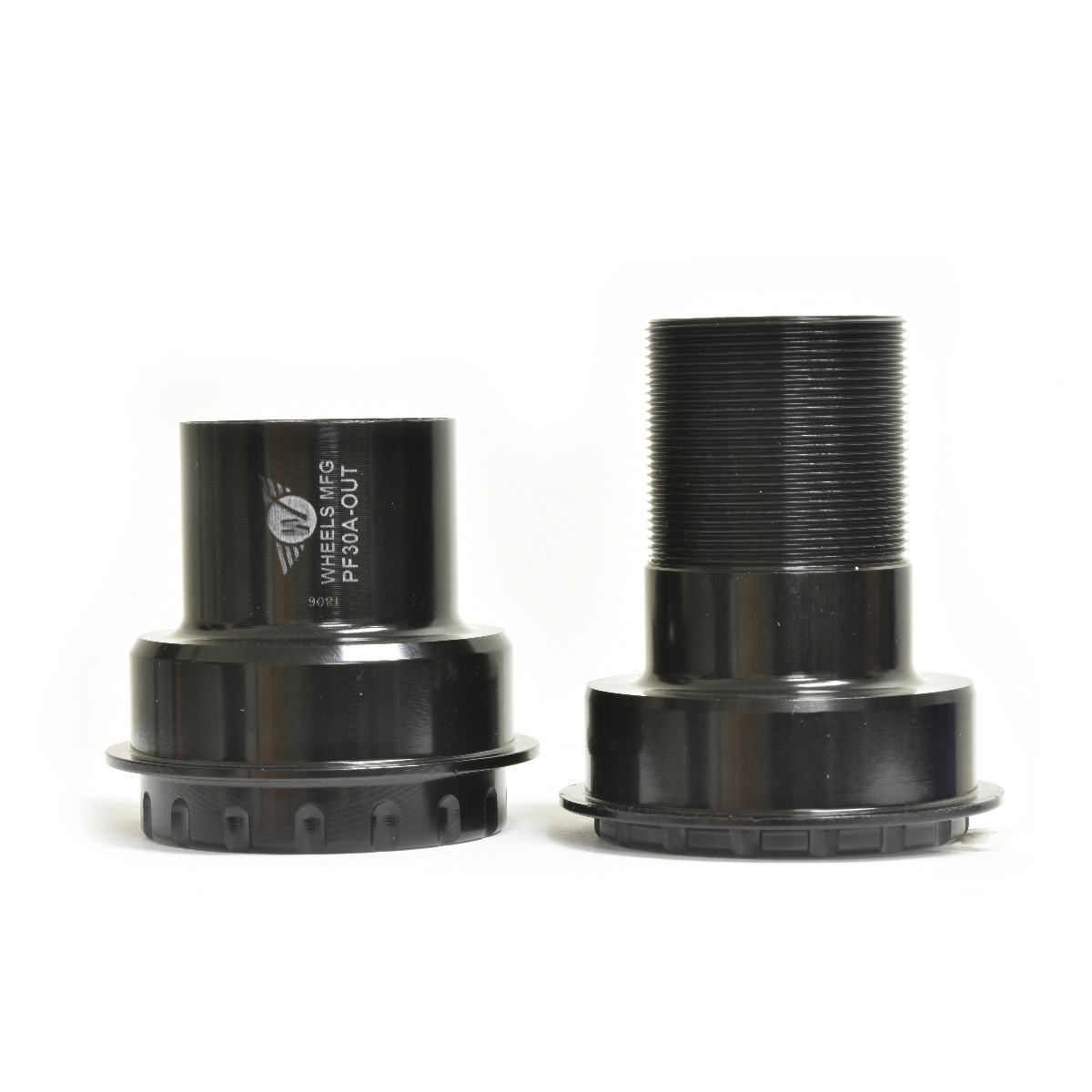

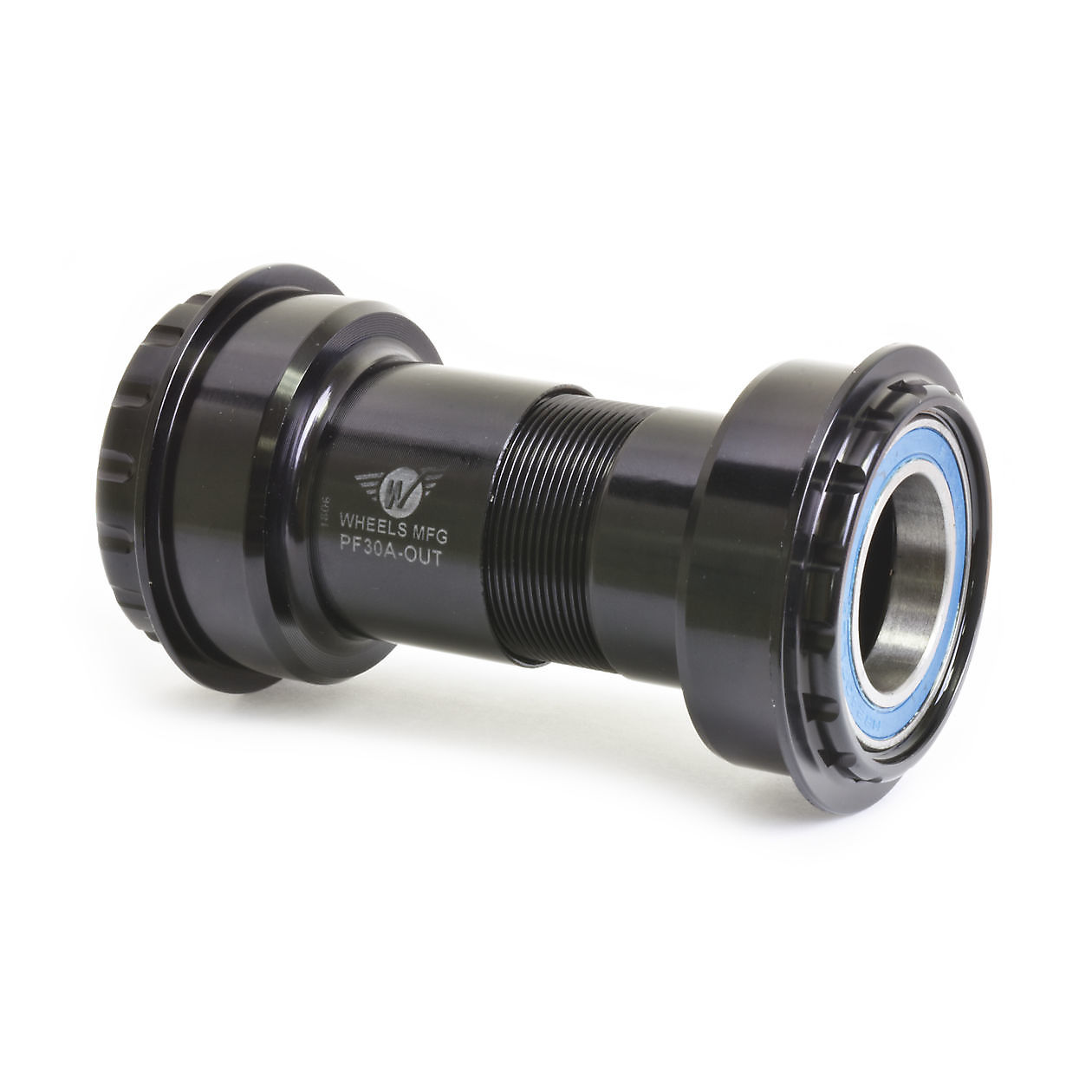

PF30A Outboard ABEC-3 BB for 24mm Cranks (Shimano) - Black

The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.

Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work!

Bearings: Enduro Angular Contact
Color: Black
Bottom Bracket/Frame Interface: Cannondale PF30A
Bottom Bracket Shell Width: 73mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 91mm in 73mm wide shell*
Crank Spindle Diameter: 24.00mm
Tool Pattern: 44mm x 16 notch
Weight: 158g
Packaged for retail display

* Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter, 73mm shell width):

Cannondale PF30A

Compatible with 24.00mm spindle diameter cranksets.*

Download PDF information: 1727700109pf30a-out-instructions-web.pdf
