T47-BB-29MM

€ 131,00

Article number: T47-BB-29MM

811079025647

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

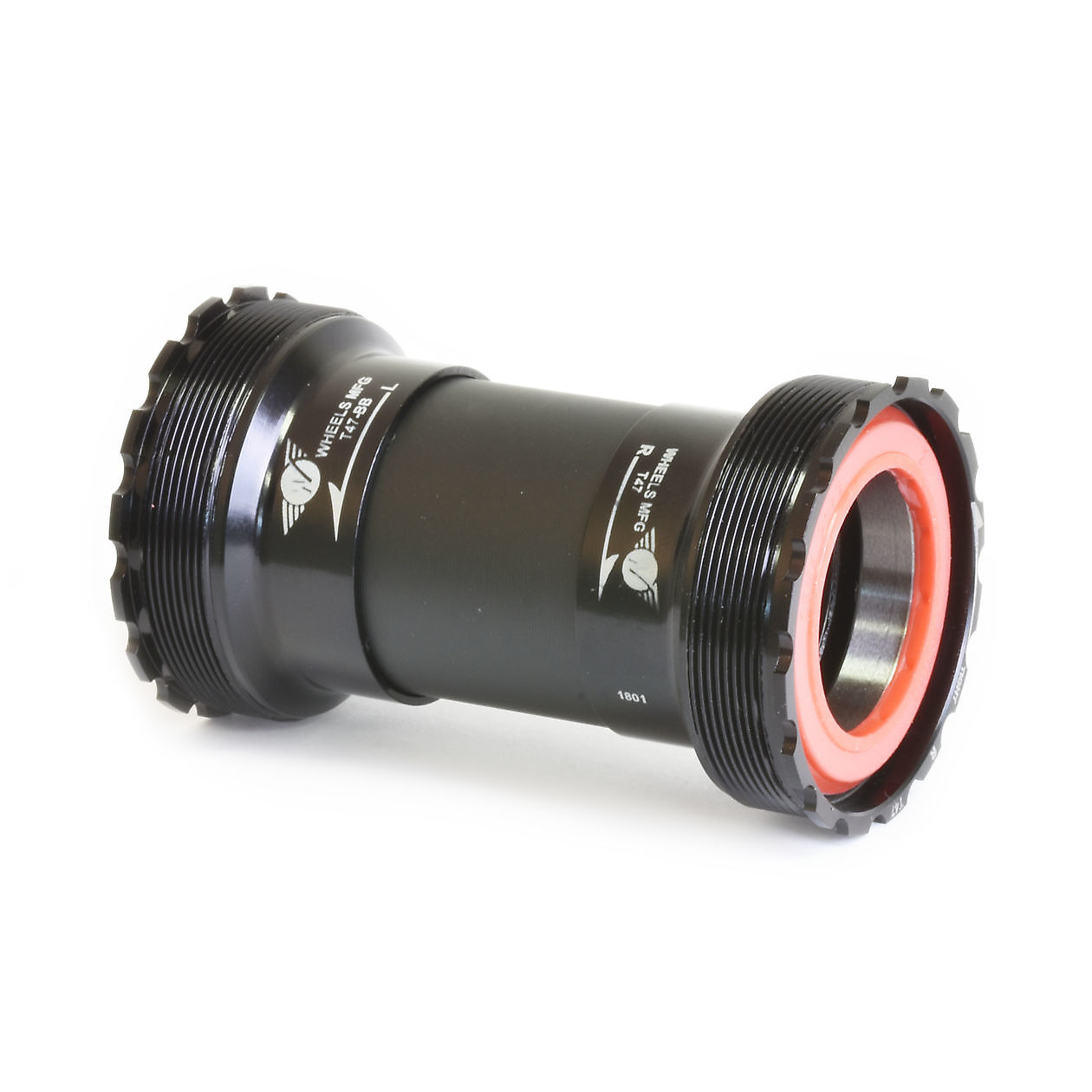

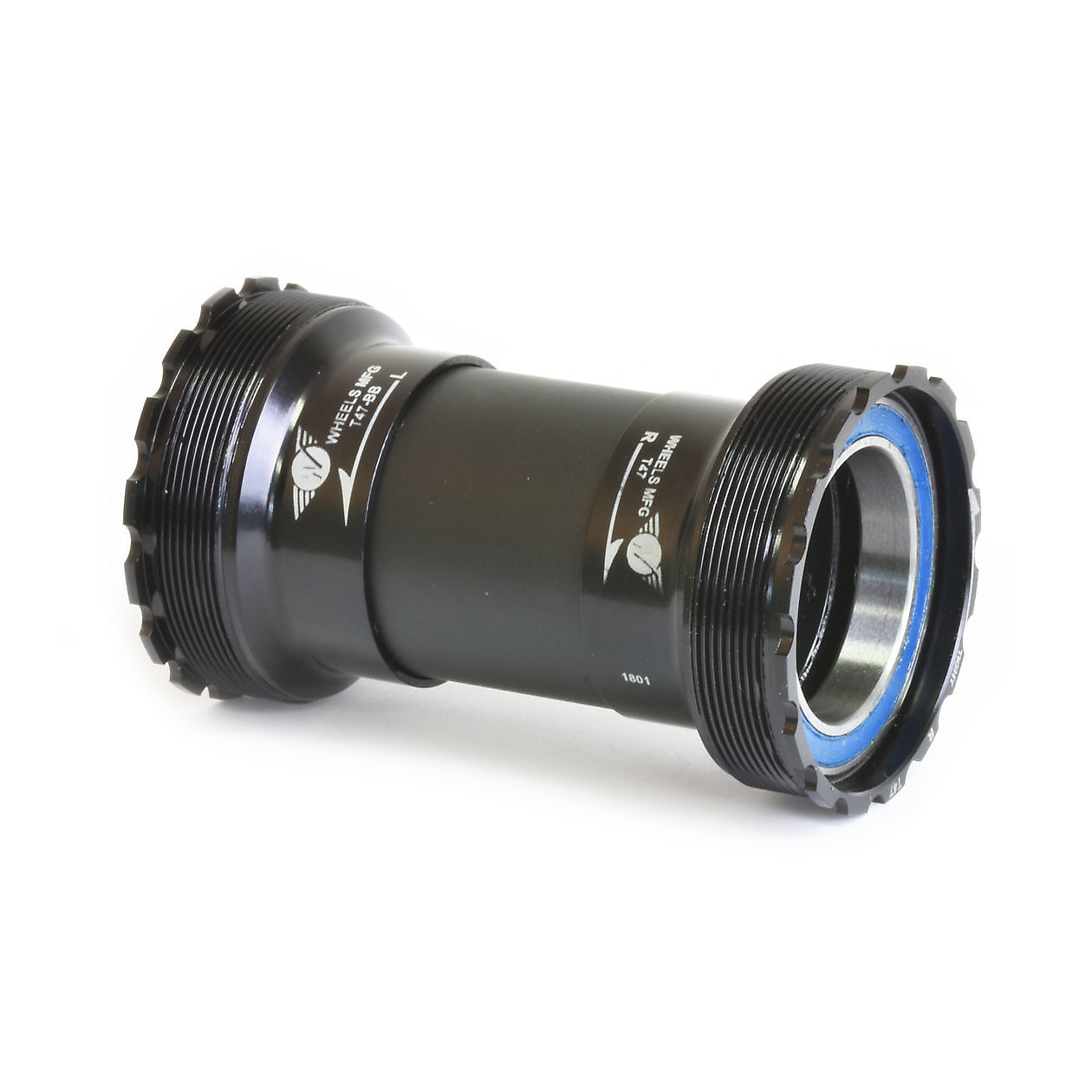

T47 Inboard ABEC-3 BB for 29mm SRAM DUB Compatible Cranks - Black

T47 threaded BB cups for T47 frames and 29mm diameter spindle SRAM DUB compatible cranks. Cups have internal bearings, and can be used in BB shells with widths from 86mm to 121mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

Bottom Bracket Includes:

BB Cups with bearings

2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer

Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: T47
Bottom Bracket Shell Width (mm): 86mm - 121mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 29mm
Over Bearing Width: 90mm in 86.5mm wide shell*
Tool Pattern: 48.5mm x 16-notch
Weight: 97g

Compatible with the following Bottom Bracket Standards (42mm BB shell inner diameter):

BB30
Specialized Alloy OSBB.

Compatible with 24.00mm spindle diameter cranksets.*
Packaged for retail display
* Over Bearing Width Dimensions include supplied silicone dust shields.

Download PDF information: 1727096918bb30-out-shimano-instructions-web.pdf
