T47-BB-SHIM-BB

€ 131,99

Article number: T47-BB-SHIM-BB

811079025975

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

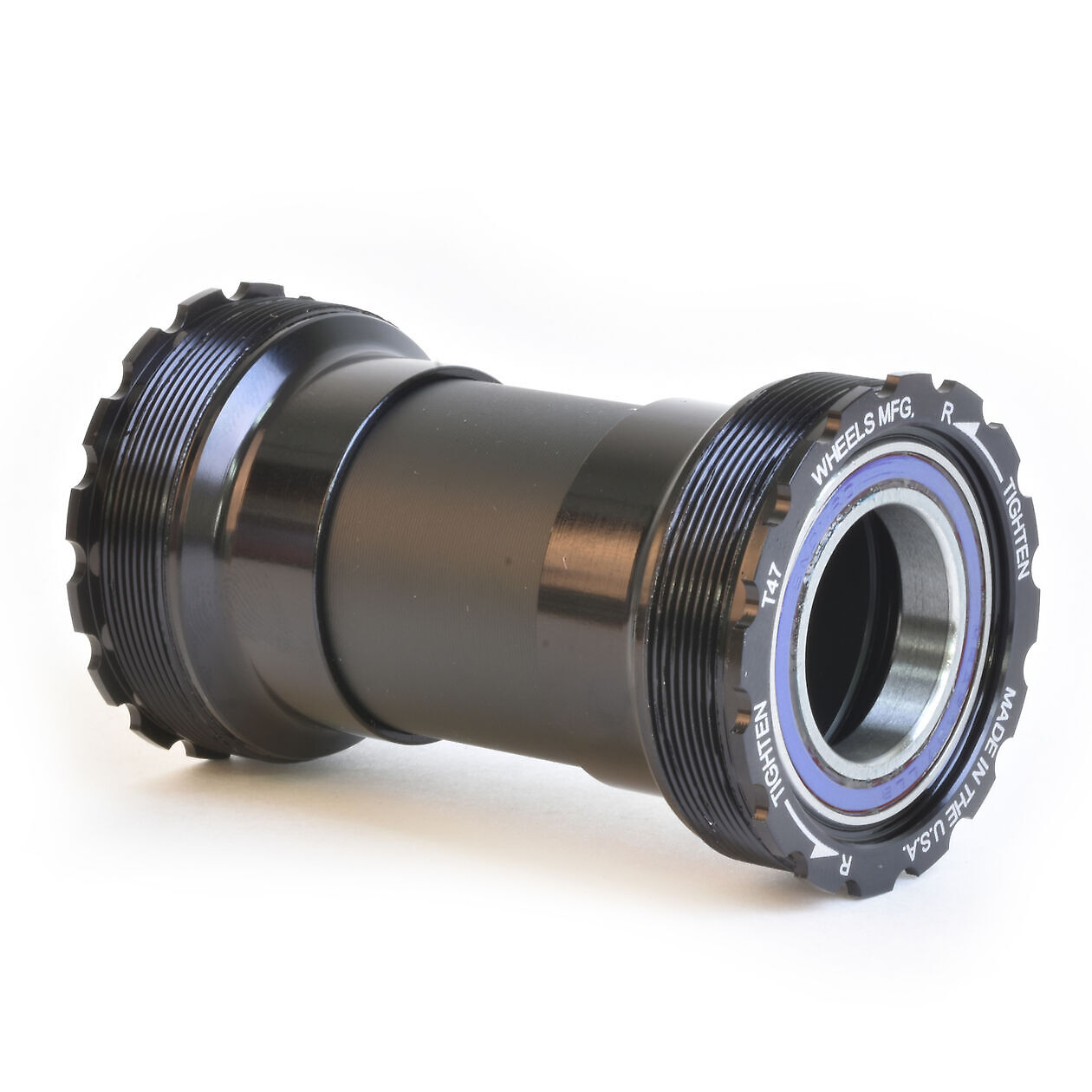

T47 ABEC-3 BB for 24mm (Shimano) Cranks - Black

T47 threaded BB cups for T47 frames and 24.00mm spindle
diameter cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

Bottom Bracket Includes:

BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers

Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: T47
Bottom Bracket Shell Width (mm): 68mm - 132mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 24.00mm
Over Bearing Width: 91.5mm in 86.5mm wide shell*
Tool Pattern: 48.5mm x 16-notch
Weight: 119g
Packaged for retail display

* Over Bearing Width Dimensions include supplied silicone dust shields.

Download PDF information: 1729599841t47-bb-shimano-instructions.pdf
